Category
Surface
Application
Retail
Luminaire luminous flux [lm]
2721
Luminaire's light efficiency [lm/W]
100.8
Power of luminaire [W]
27
Colour of the light [K]
3000
CRI
>90
Diffuser
reflector plastic metalized
Beam
medium - 35° ÷ 60°
Driver
standard on/off (E)
Colour
RAL 9005 (black)
Dimensions [mm]
108 x 174
Light source
LED
Lifetime of LED sources [h]
60000
Lx/By
L80/B10
SDCM (LED sources)
3
Luminous flux LED [lm]
3000
Protection degree
IP20
LED power [W]
25
Voltage
220..240 V, 50..60 Hz
Protection against electric shock
I
Power factor cos φ
>0,95
Assembly
surface mounted on ceiling
Material
aluminum
Operating temperature range [°C]
0 ÷ 30
Beam angle [°]
60
Weight [kg]
1.1

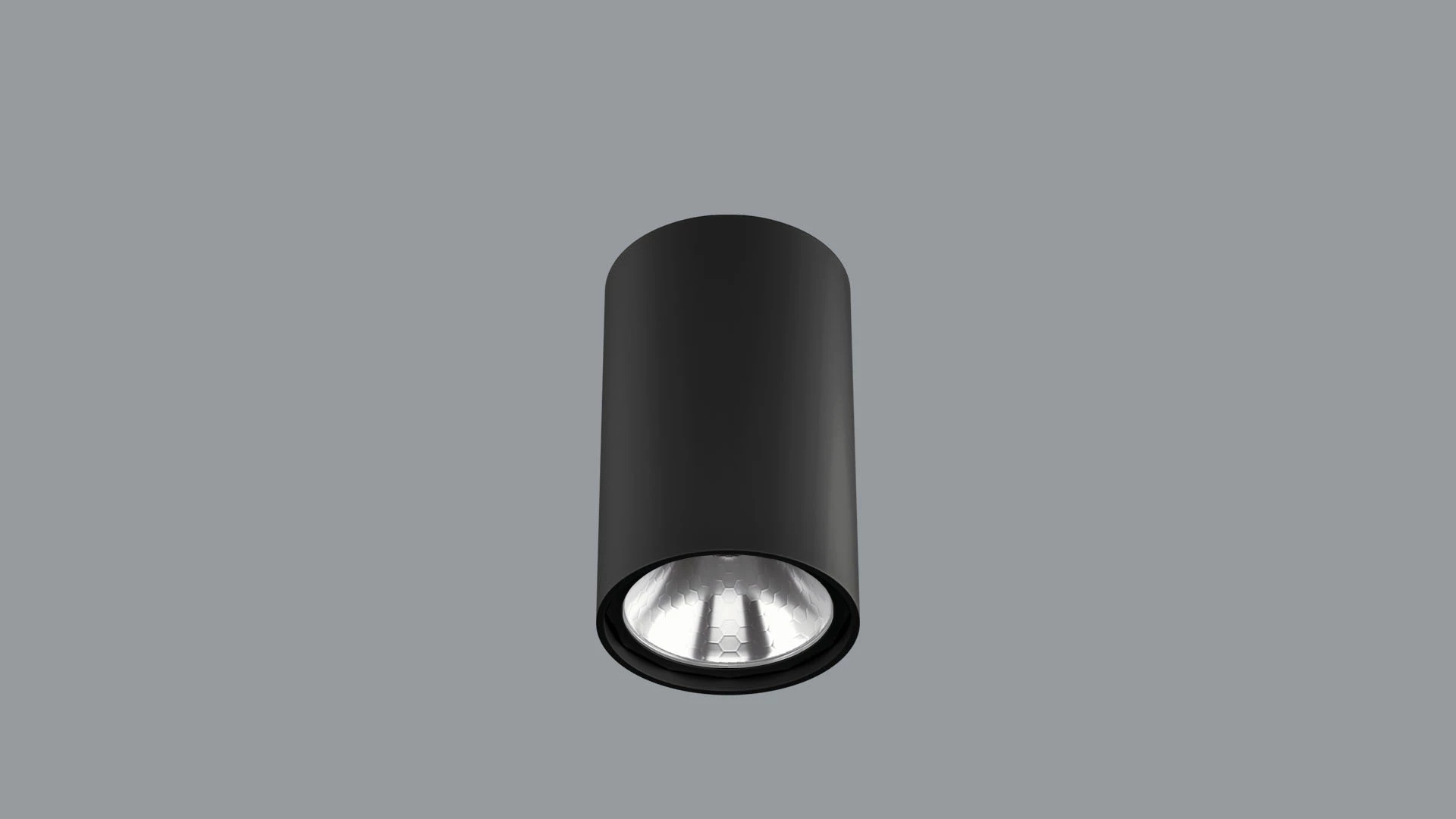

PIPE 3000 60º E 04 930 / D108X174MM

Surface downlight. Its design without screws gives an elegant and smart appereance to this product. Assembly: surface mounted on ceiling. The body material is aluminum. Colour - RAL 9005 (black). Dimensions: Ø108 x 174 mm. Weight 1,1 kg. Diffuser: reflector plastic metalized. Beam angle: 60. Light source type: LED. Colour of the light 3000 K. SDCM=3. CRI>90. Lifetime of LED sources: 60000 h L80/B10. Luminaire luminous flux: 2721 lm. Power of luminaire: 27 W. Luminaire's light efficiency: 100,8 lm/W. Driver: standard on/off (E). Voltage 220..240 V, 50..60 Hz. Power factor cosφ: >0,95. Circuit load capacity: (B10), (B16), (C10), (C16). Operating temperature range: 0 ÷ 30° C. Protection degree: IP20. Protection against electric shock: I.
CE
LED
E
kl.I
IP20
indoor
cri-90
supply-voltage
SDCM-3
lifetime-60000-L80-B10
