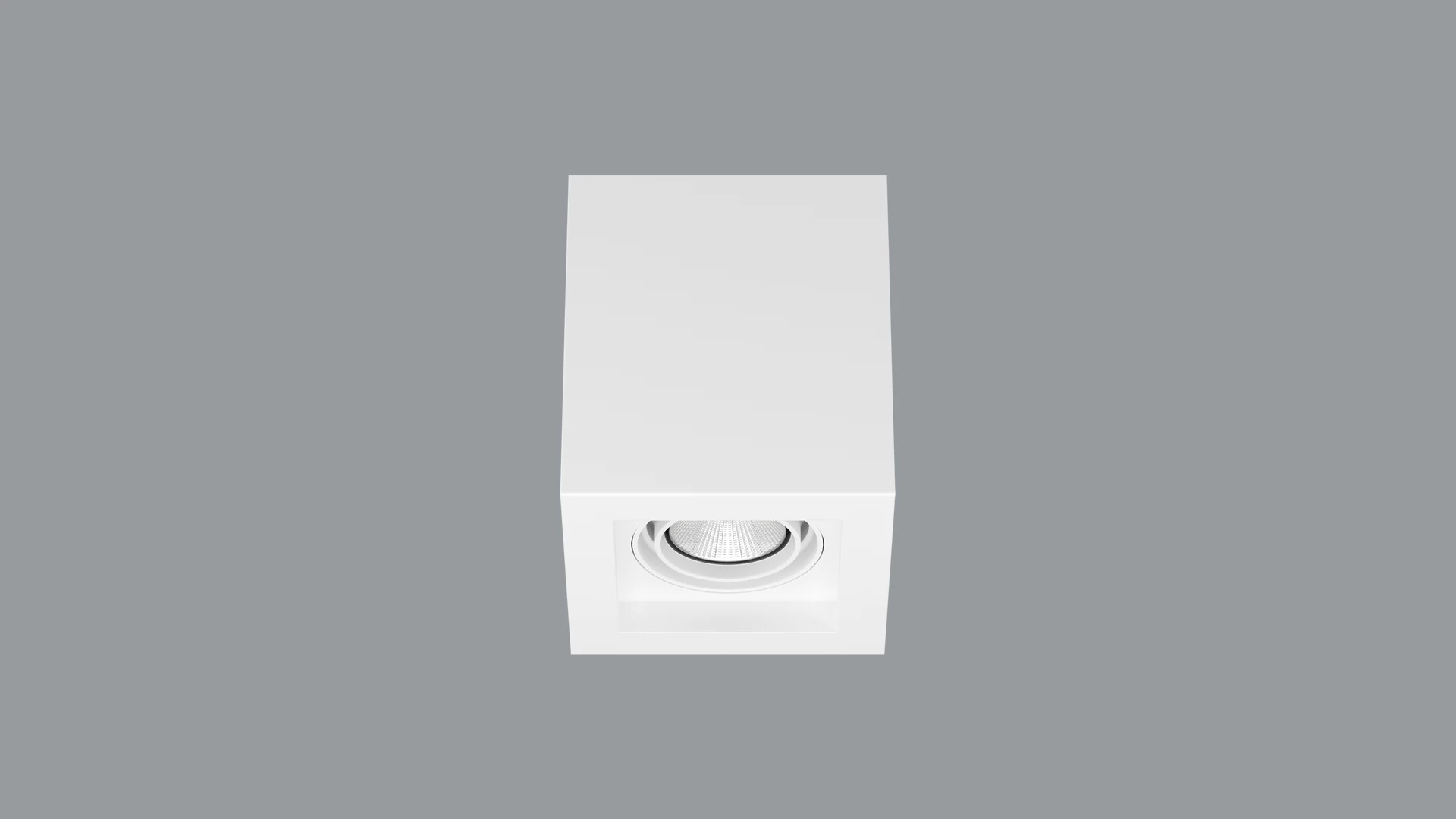

BERYL SURFACE NEW LED K
Downlight surface-mounted luminaire unrivaled in combining quality and energy efficiency. The luminaire has the ability to adjust the optics in two planes (in the vertical axis by 359° and to the left and right 15°).
- Application: Office
- CRI: 85, 80
- Diffuser: PLX (PMMA opal), Micro-PRM (micro-prismatic diffuser PMMA), transparent PMMA, transparent glass
- Driver: standard on/off (E), DIM DALI (EDD)
- Colour: RAL 9016 (white), RAL 9005 (black)
- Light source: LED
- Material: aluminum
Product variants
Filters
Filters
| Product ID | Name | [Lm] | [Lm/W] | Diffuser | Driver | Colour | [K] | A x B x H |
|---|---|---|---|---|---|---|---|---|
| 19.4037.3111.04 | BERYL SURFACE NEW LED K-1 1800 | 1184 | 92,5 | PLX (PMMA opal) | standard on/off (E) | RAL 9005 (black) | 3000 | 130 x 130 x 154 |
| 19.4037.3111.34 | BERYL SURFACE NEW LED K-1 1800 | 1184 | 92,5 | PLX (PMMA opal) | standard on/off (E) | RAL 9016 (white) | 3000 | 130 x 130 x 154 |
| 19.4037.3113.04 | BERYL SURFACE NEW LED K-1 1800 | 1184 | 92,5 | PLX (PMMA opal) | DIM DALI (EDD) | RAL 9005 (black) | 3000 | 130 x 130 x 154 |
| 19.4037.3113.34 | BERYL SURFACE NEW LED K-1 1800 | 1184 | 92,5 | PLX (PMMA opal) | DIM DALI (EDD) | RAL 9016 (white) | 3000 | 130 x 130 x 154 |
| 19.4037.3121.04 | BERYL SURFACE NEW LED K-1 1800 | 1219 | 95,2 | PLX (PMMA opal) | standard on/off (E) | RAL 9005 (black) | 4000 | 130 x 130 x 154 |
| 19.4037.3121.34 | BERYL SURFACE NEW LED K-1 1800 | 1219 | 95,2 | PLX (PMMA opal) | standard on/off (E) | RAL 9016 (white) | 4000 | 130 x 130 x 154 |
| 19.4037.3123.04 | BERYL SURFACE NEW LED K-1 1800 | 1219 | 95,2 | PLX (PMMA opal) | DIM DALI (EDD) | RAL 9005 (black) | 4000 | 130 x 130 x 154 |
| 19.4037.3123.34 | BERYL SURFACE NEW LED K-1 1800 | 1219 | 95,2 | PLX (PMMA opal) | DIM DALI (EDD) | RAL 9016 (white) | 4000 | 130 x 130 x 154 |
| 19.4037.2111.04 | BERYL SURFACE NEW LED K-1 1800 | 1325 | 103,5 | Micro-PRM (micro-prismatic diffuser PMMA) | standard on/off (E) | RAL 9005 (black) | 3000 | 130 x 130 x 154 |
| 19.4037.2111.34 | BERYL SURFACE NEW LED K-1 1800 | 1325 | 103,5 | Micro-PRM (micro-prismatic diffuser PMMA) | standard on/off (E) | RAL 9016 (white) | 3000 | 130 x 130 x 154 |
Light effects
direct light distributionProduct features
1 Aluminum cast housing
2 Adjust the optics in two planes (in the vertical axis by 359° and to the left and right 15°)
3 Two sizes and two luminous flux values
4 Downlight surface mounted luminaire
1. Cecha 1
Aluminum cast housing
2. Cecha 2
Adjust the optics in two planes (in the vertical axis by 359° and to the left and right 15°)
3. Cecha 3
Two sizes and two luminous flux values
4. Cecha 4
Downlight surface mounted luminaire
