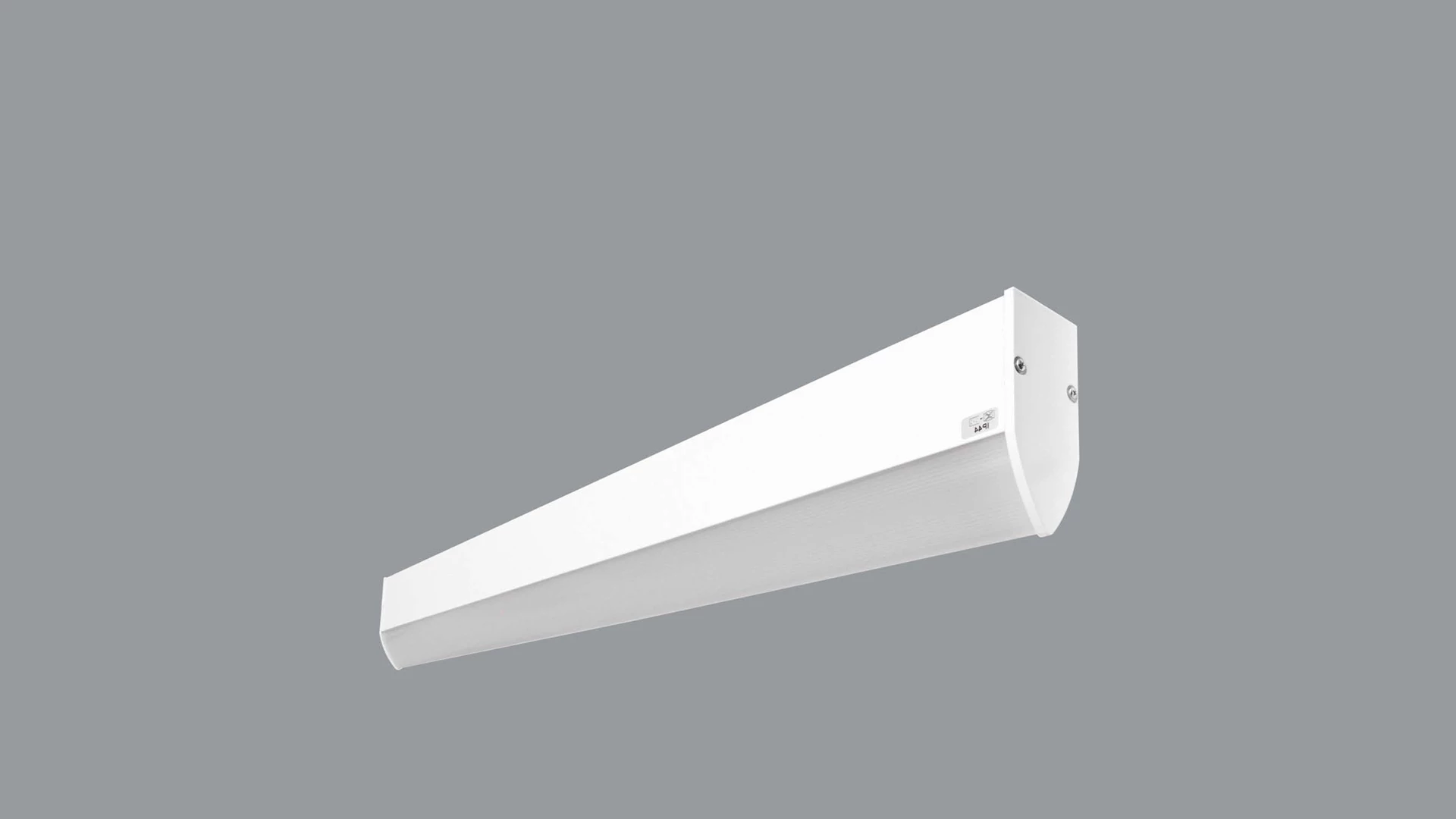

LAMINAR LED

The streamlined, oval shape of this luminaire adds not only elegance but also allows for use in spaces requiring laminar airflow. Effortless installation with springs eliminates the need to open the luminaire during installation.

  • Application: Clean&Medical
  • CRI: >80
  • Diffuser: PC (opalescent polycarbonate)
  • Driver: standard on/off (E), DIM DALI (EDD)
  • Colour: anodised aluminum, RAL 9010 (white)
  • Light source: LED
  • Material: aluminum

Product variants

CE
LED
E
kl.I
indoor
nie_dom
electronic-equipment
dimmable-DALI
supply-voltage
lifetime-60000-L80-B10
lifetime-100000-L80-B10
IP44
SDCM-3
lifetime-147000-L70-B50
cri-v80

Select filters

Filters

Filters
Product ID Name [Lm] [Lm/W] Diffuser Driver Colour [K] A x B x H
19.4364.2981.24 LAMINAR LED 1650 1293 29,4 PC (opalescent polycarbonate) standard on/off (E) anodised aluminum yellow colour (λp=592 nm) 859 x 47 x 109
19.4364.2981.33 LAMINAR LED 1650 1293 29,4 PC (opalescent polycarbonate) standard on/off (E) RAL 9010 (white) yellow colour (λp=592 nm) 859 x 47 x 109
19.4364.2983.24 LAMINAR LED 1650 1293 29,4 PC (opalescent polycarbonate) DIM DALI (EDD) anodised aluminum yellow colour (λp=592 nm) 859 x 47 x 109
19.4364.2983.33 LAMINAR LED 1650 1293 29,4 PC (opalescent polycarbonate) DIM DALI (EDD) RAL 9010 (white) yellow colour (λp=592 nm) 859 x 47 x 109
0E1TDSL22YPC24 LAMINAR LED 2200 PC E 24 IP44 YELLOW MONO / L-1140MM 1724 29,7 PC (opalescent polycarbonate) standard on/off (E) anodised aluminum yellow colour (λp=592 nm) 1140 x 47 x 109
19.4364.3281.33 LAMINAR LED 2200 1724 29,7 PC (opalescent polycarbonate) standard on/off (E) RAL 9010 (white) yellow colour (λp=592 nm) 1140 x 47 x 109
19.4364.3283.24 LAMINAR LED 2200 1724 29,7 PC (opalescent polycarbonate) DIM DALI (EDD) anodised aluminum yellow colour (λp=592 nm) 1140 x 47 x 109
19.4364.3283.33 LAMINAR LED 2200 1724 29,7 PC (opalescent polycarbonate) DIM DALI (EDD) RAL 9010 (white) yellow colour (λp=592 nm) 1140 x 47 x 109
19.4364.4A81.24 LAMINAR LED 2750 2155 29,5 PC (opalescent polycarbonate) standard on/off (E) anodised aluminum yellow colour (λp=592 nm) 1421 x 47 x 109
19.4364.4A81.33 LAMINAR LED 2750 2155 29,5 PC (opalescent polycarbonate) standard on/off (E) RAL 9010 (white) yellow colour (λp=592 nm) 1421 x 47 x 109

Light effects

direct light distribution direct light distribution
