Category
Suspended
Application
Architecture and infrastructure, Retail
Luminaire luminous flux [lm]
1004
Luminaire's light efficiency [lm/W]
111.6
Power of luminaire [W]
9
Colour of the light [K]
4000
CRI
>80
Beam
narrow - 15° ÷ 35°
Driver
standard on/off (E)
Light distribution
Direct (l-down)
Colour
RAL 3011 (dark red)
Dimensions [mm]
45 x 600
Light source
LED
Lifetime of LED sources [h]
>100000
Lx/By
L80/B10
Luminous flux LED [lm]
1055
Luminous efficiency of sources [lm/W]
131.9
Protection degree
IP20
LED power [W]
8
Voltage
220..240 V, 50..60 Hz
Protection against electric shock
I
Circuit load capacity
46 (B10), 74 (B16), 72 (C10), 115 (C16)
Power factor cos φ
>0,95
Assembly
surface mounted on slings
Material
aluminum
Impact resistant
IK06
Operating temperature range [°C]
5 ÷ 30
Beam angle [°]
(C0-C180) / (C90-C270) - 22,6° / 23,2°
EAN
5902107249250
Weight [kg]
1.1

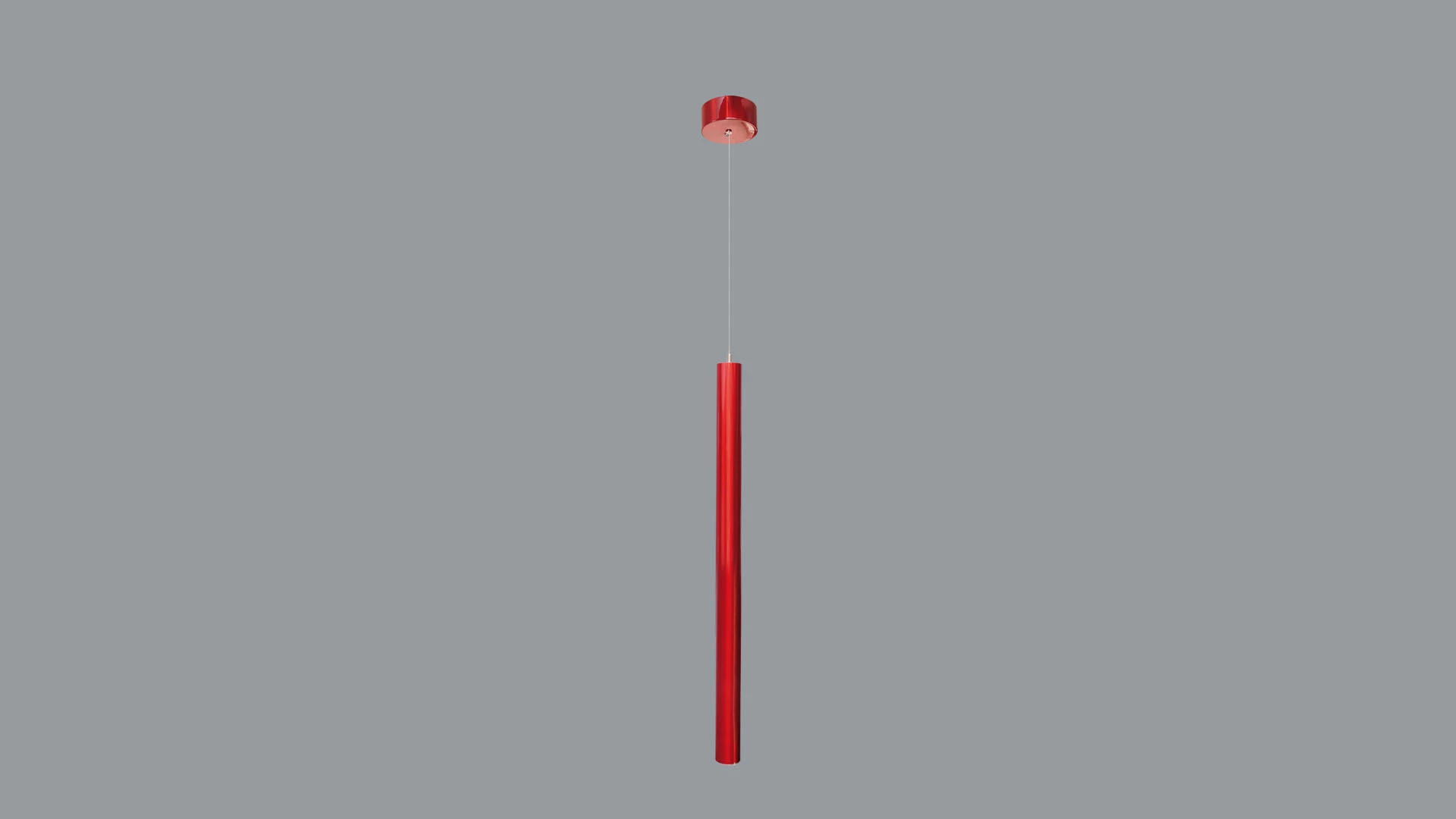

TYTAN STALACTITE SLIM 1000 26° E 840 / S-1,5M H-600 RAL3011

Indoor luminaire. Assembly: surface mounted on slings. The body material is aluminum. Colour - RAL 3011 (dark red). Luminaire dimensions: Ø45 x 600 mm. Weight 1,1 kg. The efficiency of the optical system is 95,13%. Beam angle: (C0-C180) / (C90-C270) - 22,6° / 23,2°. Light source type: LED. Colour of the light 4000 K. SDCM=2. CRI>80. Lifetime of LED sources: >100000 h L80/B10. Luminaire luminous flux: 1004 lm. Power of luminaire: 9 W. Luminaire's light efficiency: 111,6 lm/W. Driver: standard on/off (E). Voltage 220..240 V, 50..60 Hz. Power factor cosφ: >0,95. Circuit load capacity: 46 (B10), 74 (B16), 72 (C10), 115 (C16). Operating temperature range: 5 ÷ 30° C. Protection degree: IP20. Impact resistant: IK06. Protection against electric shock: I.
