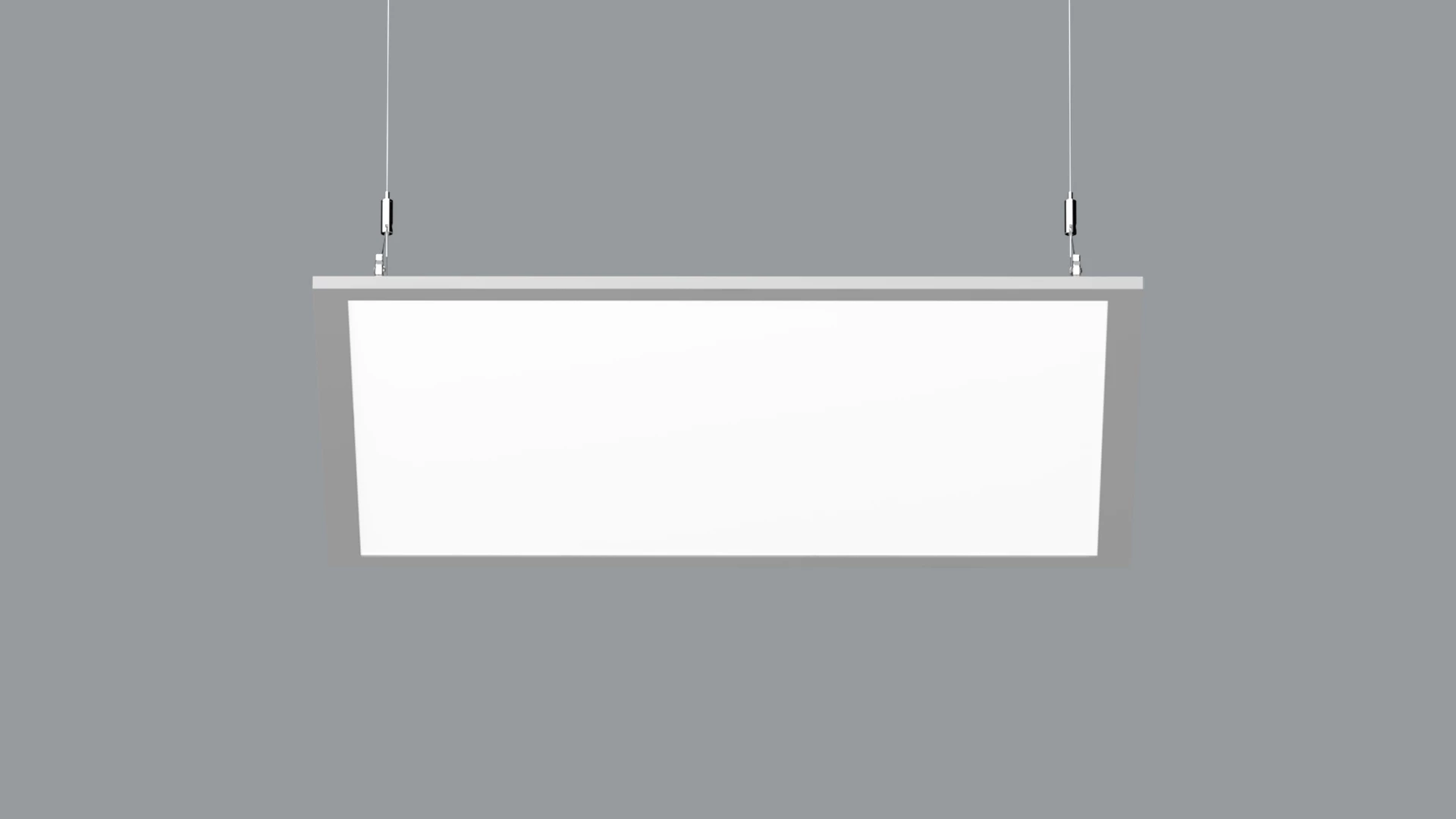

EUROPANEL LED S-1,5M

Modern luminaire with high-performance LED sources, guaranteeing energy efficiency and comfort. An excellent choice for public spaces, offices, conference rooms, and lecture halls, thanks to its exceptional lighting qualities and versatile design.

  • Application: Office
  • CRI: >80
  • Diffuser: PLX (PMMA opal), Micro-PRM (micro-prismatic diffuser PMMA)
  • Driver: standard on/off (E), DIM DALI (EDD), low output flicker driver (E-LF)
  • Colour: RAL 9016 (white)
  • Light source: LED
  • Material: aluminum

Product variants

CE
LED
E
IK04
indoor
nie_dom
electronic-equipment
dimmable-DALI
supply-voltage
SDCM-3
lifetime-100000-L70-B10
lifetime-80000-L80-B10
IP20
kl.II
cri-v80

Select filters

Filters

Filters
Category
Application
Luminaire luminous flux [lm]
Luminaire's light efficiency [lm/W]
Power of luminaire [W]
Colour of the light [K]
CRI
Diffuser
Beam
Driver
Light distribution
Colour
Dimensions [mm]
Beam angle [°]
Product ID Name [Lm] [Lm/W] Diffuser Driver Colour [K] A x B x H
19.4365.4121.34 EUROPANEL LED 3800 1200x300 2466 117,4 PLX (PMMA opal) standard on/off (E) RAL 9016 (white) 4000 1196 x 296 x 11
19.4365.2121.34 EUROPANEL LED 3800 1200x300 2575 122,6 Micro-PRM (micro-prismatic diffuser PMMA) standard on/off (E) RAL 9016 (white) 4000 1196 x 296 x 11
19.4365.3121.34 EUROPANEL LED 3800 2645 126 PLX (PMMA opal) standard on/off (E) RAL 9016 (white) 4000 596 x 596 x 11
19.4365.3123.34 EUROPANEL LED 3800 2645 126 PLX (PMMA opal) DIM DALI (EDD) RAL 9016 (white) 4000 596 x 596 x 11
19.4365.3221.34 EUROPANEL LED 4800 3689 125,9 PLX (PMMA opal) standard on/off (E) RAL 9016 (white) 4000 596 x 596 x 11
19.4365.3223.34 EUROPANEL LED 4800 3689 125,9 PLX (PMMA opal) DIM DALI (EDD) RAL 9016 (white) 4000 596 x 596 x 11
19.4365.1221.34 EUROPANEL LED 4800 3857 131,6 Micro-PRM (micro-prismatic diffuser PMMA) standard on/off (E) RAL 9016 (white) 4000 596 x 596 x 11
19.4365.1223.34 EUROPANEL LED 4800 3857 131,6 Micro-PRM (micro-prismatic diffuser PMMA) DIM DALI (EDD) RAL 9016 (white) 4000 596 x 596 x 11
19.4365.4321.34 EUROPANEL LED 5800 1200X300 4161 90,5 PLX (PMMA opal) standard on/off (E) RAL 9016 (white) 4000 1196 x 296 x 11
19.4365.2321.34 EUROPANEL LED 5800 1200X300 4346 94,5 Micro-PRM (micro-prismatic diffuser PMMA) standard on/off (E) RAL 9016 (white) 4000 1196 x 296 x 11
19.4365.2323.34 EUROPANEL LED 5800 1200X300 4346 94,5 Micro-PRM (micro-prismatic diffuser PMMA) DIM DALI (EDD) RAL 9016 (white) 4000 1196 x 296 x 11
19.4365.2326.34 EUROPANEL LED 5800 1200X300 4346 94,5 Micro-PRM (micro-prismatic diffuser PMMA) low output flicker driver (E-LF) RAL 9016 (white) 4000 1196 x 296 x 11
19.4365.3321.34 EUROPANEL LED 5800 4463 97,9 PLX (PMMA opal) standard on/off (E) RAL 9016 (white) 4000 596 x 596 x 11
19.4365.3323.34 EUROPANEL LED 5800 4463 97,9 PLX (PMMA opal) DIM DALI (EDD) RAL 9016 (white) 4000 596 x 596 x 11
19.4365.1321.34 EUROPANEL LED 5800 4666 102,3 Micro-PRM (micro-prismatic diffuser PMMA) standard on/off (E) RAL 9016 (white) 4000 596 x 596 x 11
19.4365.1323.34 EUROPANEL LED 5800 4666 102,3 Micro-PRM (micro-prismatic diffuser PMMA) DIM DALI (EDD) RAL 9016 (white) 4000 596 x 596 x 11

Light effects

direct light distribution direct light distribution
plamy_Final-Color-Output0043
