Category
Surface
Application
Clean&Medical
Luminaire luminous flux [lm]
8102
Luminaire's light efficiency [lm/W]
127.4
Power of luminaire [W]
63.6
Colour of the light [K]
4000
CRI
>95
Diffuser
SHMR (hardened anti-reflective mat glass)
Beam
wideflood - 90° ÷ 120°
Driver
standard on/off (E)
Light distribution
Direct (l-down)
Colour
white
Dimensions [mm]
620 x 620 x 78
Light source
LED
Lifetime of LED sources [h]
60000
Lx/By
L80/B10
SDCM (LED sources)
3
Luminous flux LED [lm]
9791
Luminous efficiency of sources [lm/W]
157.9
Protection degree
IP65
LED power [W]
62
Voltage
220..240 V, 50..60 Hz
Protection against electric shock
I
Circuit load capacity
12 (B10), 20 (B16), 21 (C10), 34 (C16)
Power factor cos φ
>0,95
Assembly
surface mounted on ceiling
Material
steel sheet
Impact resistant
IK08
Operating temperature range [°C]
5 ÷ 30
Beam angle [°]
(C0-C180) / (C90-C270) - 99,6° / 99,6°
EAN
5902107015381

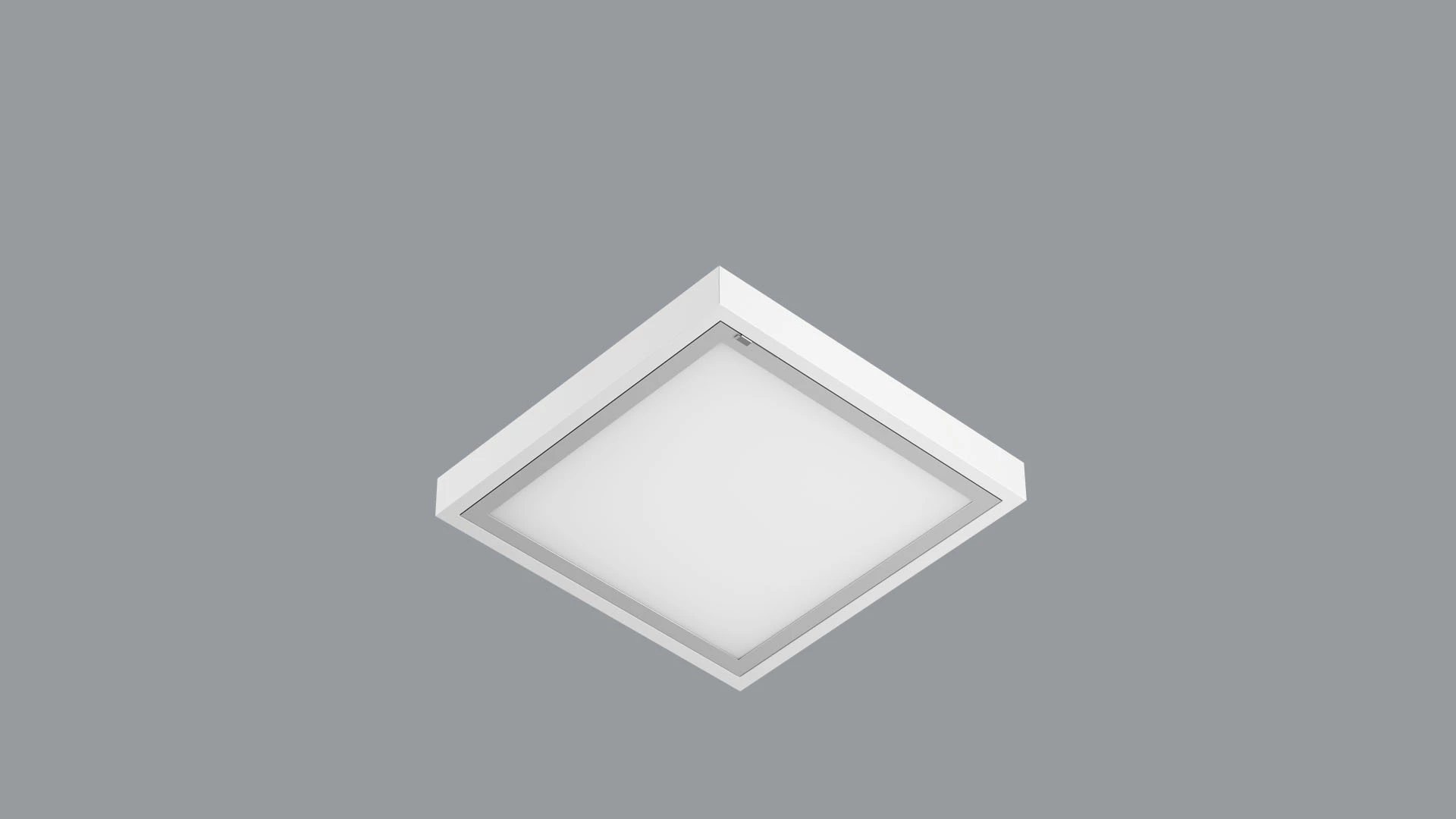

RUBIN CLEAN ISO LED CRI95 9000 SHMR E IP65 940 KRG3K / 620x620

Indoor luminaire. Assembly: surface mounted on ceiling. The body material is steel sheet. Colour - white. Luminaire dimensions: 620 x 620 x 78 mm. Diffuser: SHMR (hardened anti-reflective mat glass). The efficiency of the optical system is 82,75%. Beam angle: (C0-C180) / (C90-C270) - 99,6° / 99,6°. Light source type: LED. Colour of the light 4000 K. SDCM=3. CRI>95. Lifetime of LED sources: 60000 h L80/B10. Luminaire luminous flux: 8102 lm. Power of luminaire: 63,6 W. Luminaire's light efficiency: 127,4 lm/W. Driver: standard on/off (E). Voltage 220..240 V, 50..60 Hz. Power factor cosφ: >0,95. Circuit load capacity: 12 (B10), 20 (B16), 21 (C10), 34 (C16). Operating temperature range: 5 ÷ 30° C. Protection degree: IP65. Impact resistant: IK08. Protection against electric shock: I. This is a medical device. Use it in accordance with the instructions for use.
CE
LED
E
kl.I
IP65
IK08
indoor
nie_dom
cri-v95
electronic-equipment
supply-voltage
SDCM-3
lifetime-60000-L80-B10
