Category
Track lights
Application
Retail
Luminaire luminous flux [lm]
1557
Luminaire's light efficiency [lm/W]
121.6
Power of luminaire [W]
12.8
Colour of the light [K]
4000
CRI
>80
Diffuser
none
Beam
medium - 35° ÷ 60°
Driver
DIM DALI (EDD)
Light distribution
Direct (l-down)
Colour
RAL 9003 (white)
Dimensions [mm]
120 x 148
Light source
LED
Lifetime of LED sources [h]
83000 (1) / 100000 (2) / 100000 (3)
Lx/By
L90/B10 (1) / L80/B10 (2) / L70/B10 (3)
SDCM (LED sources)
3
Luminous flux LED [lm]
2058
Luminous efficiency of sources [lm/W]
182.1
Protection degree
IP20
LED power [W]
11.3
Voltage
220..240 V, 50..60 Hz
Protection against electric shock
II
Circuit load capacity
16 (B10), 27 (B16), 27 (C10), 44 (C16)
Power factor cos φ
>0,95
Assembly
mounted on a three-phase track
Material
aluminum
Impact resistant
IK04
Operating temperature range [°C]
-20 ÷ 35
Beam angle [°]
(C0-C180) / (C90-C270) - 53,4° / 52°
EAN
5902107255695

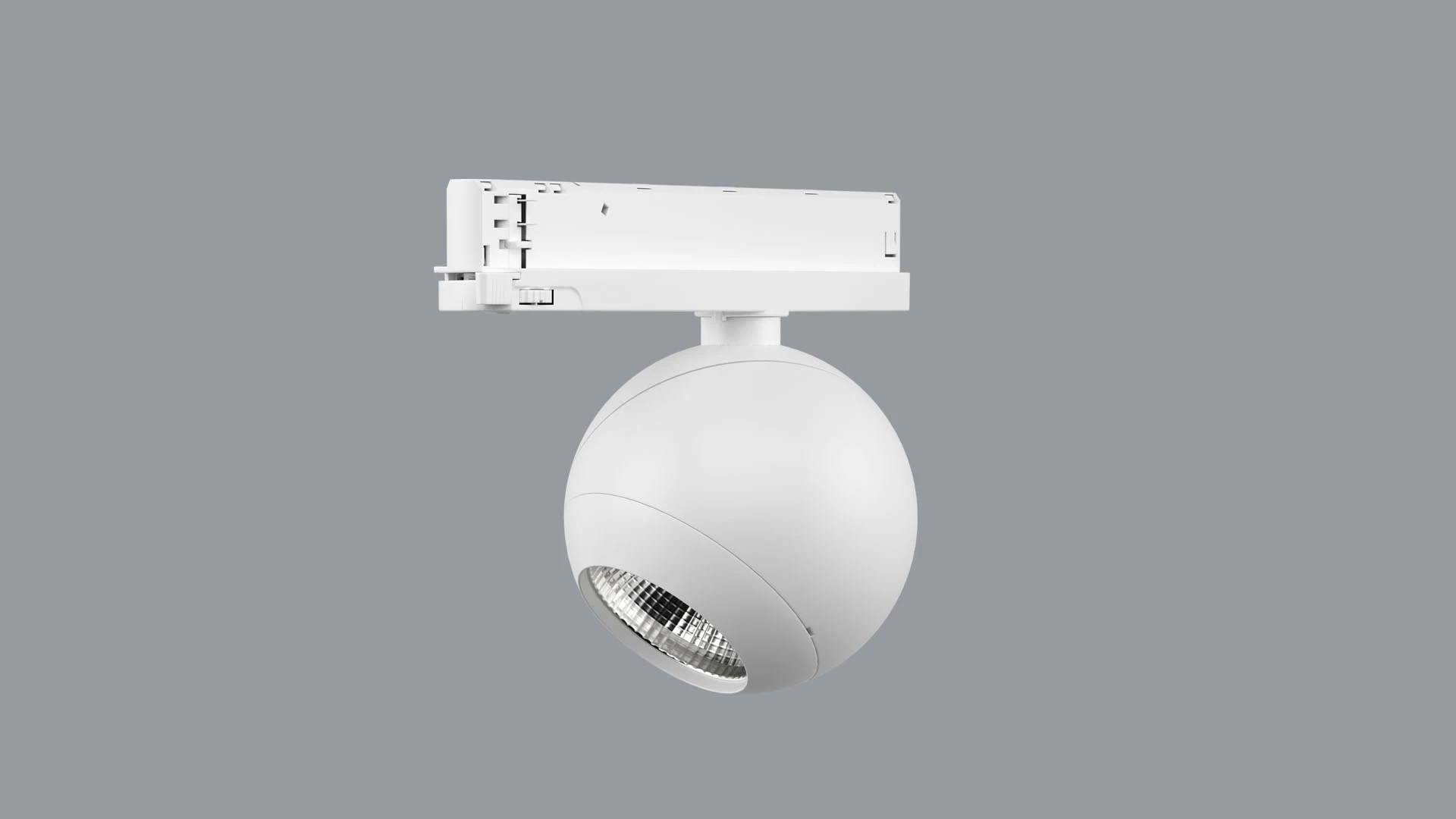

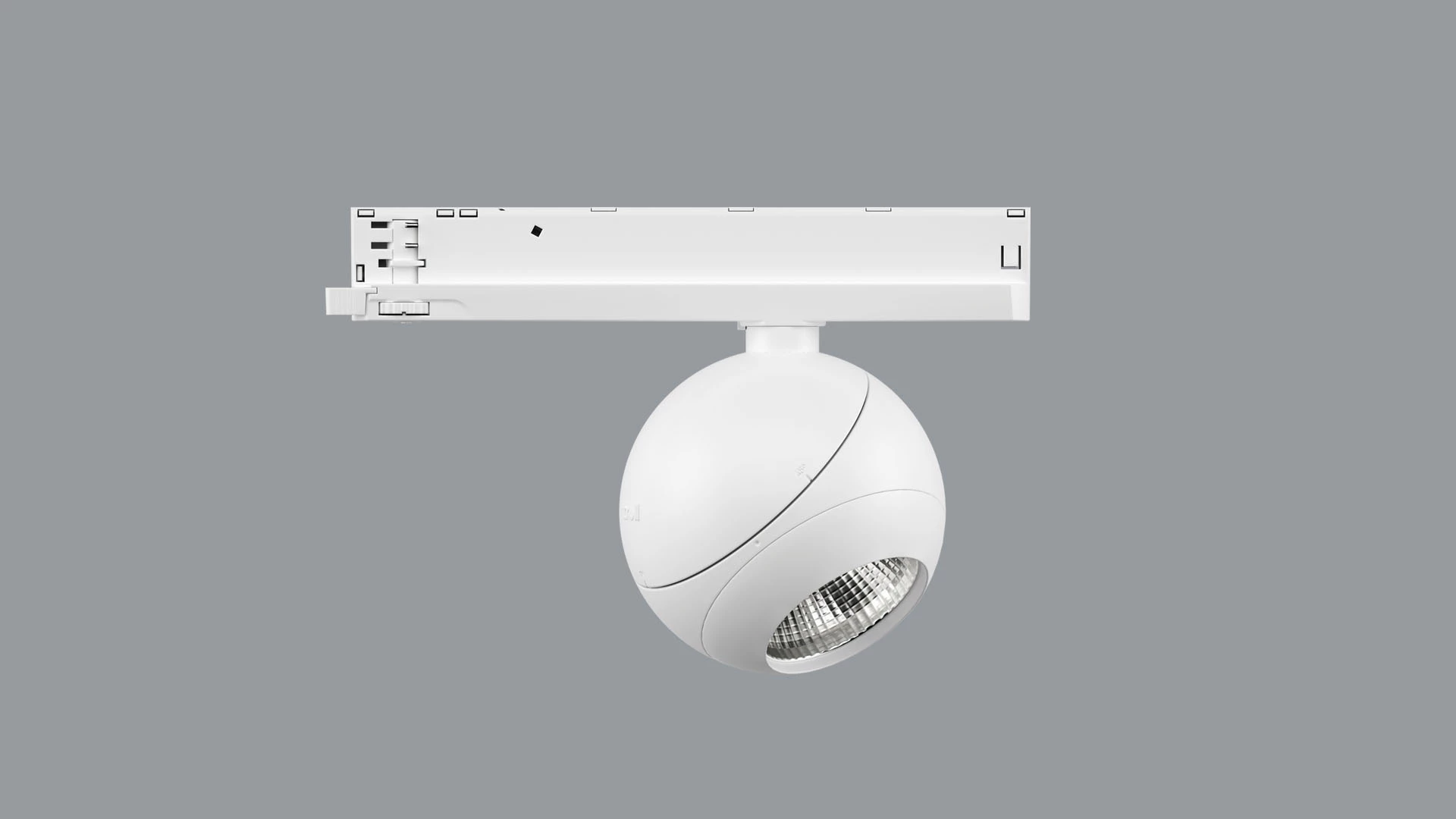

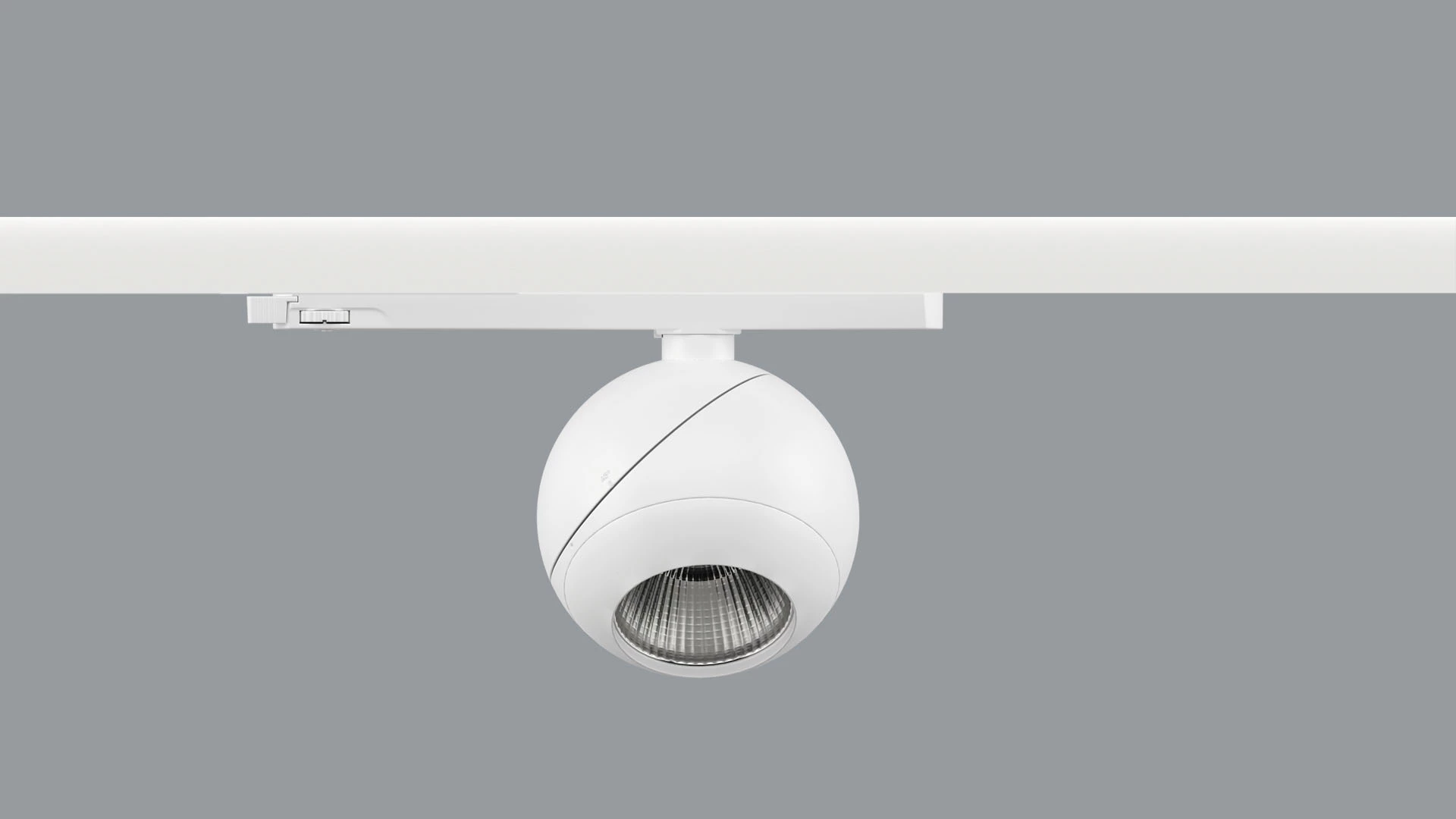

LUMBO 1800 60° EDD 63 840 3F

Indoor luminaire. Assembly: mounted on a three-phase track. The body material is aluminum. Colour - RAL 9003 (white). Luminaire dimensions: Ø120 x 148 mm. Diffuser: none. The efficiency of the optical system is 75,68%. Beam angle: (C0-C180) / (C90-C270) - 53,4° / 52°. Light source type: LED. Colour of the light 4000 K. SDCM=3. CRI>80. Lifetime of LED sources: 83000 (1) / 100000 (2) / 100000 (3) h L90/B10 (1) / L80/B10 (2) / L70/B10 (3). Luminaire luminous flux: 1557 lm. Power of luminaire: 12,8 W. Luminaire's light efficiency: 121,6 lm/W. Driver: DIM DALI (EDD). Voltage 220..240 V, 50..60 Hz. Power factor cosφ: >0,95. Circuit load capacity: 16 (B10), 27 (B16), 27 (C10), 44 (C16). Operating temperature range: -20 ÷ 35° C. Protection degree: IP20. Impact resistant: IK04. Protection against electric shock: II.
CE
LED
E
kl.II
IP20
IK04
indoor
nie_dom
cri-v80
dimmable-DALI
supply-voltage
swivel-355
orientation-90
SDCM-3
lifetime-83000-L90-B10
lifetime-100000-L80-B10
lifetime-100000-L70-B10
