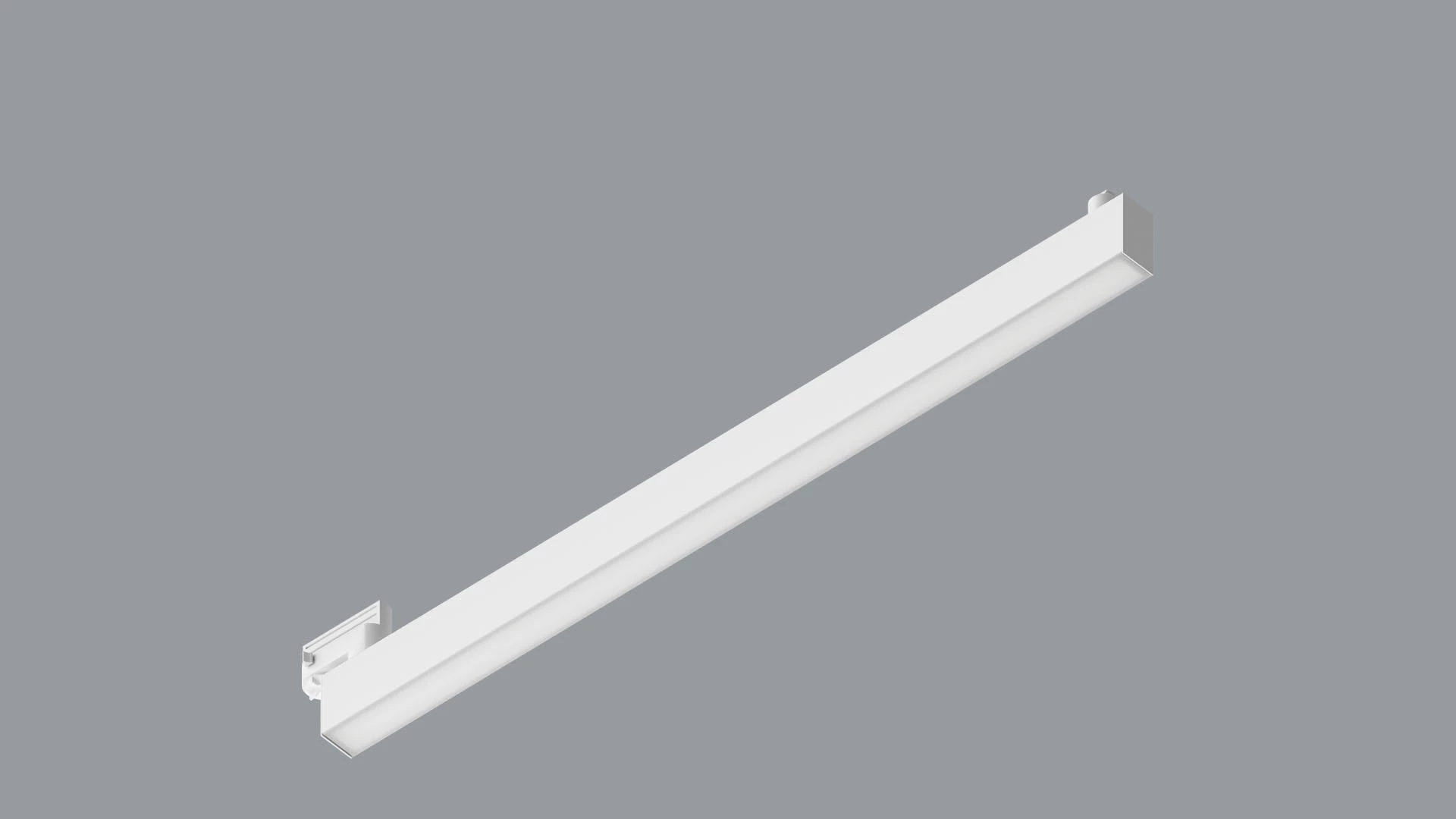

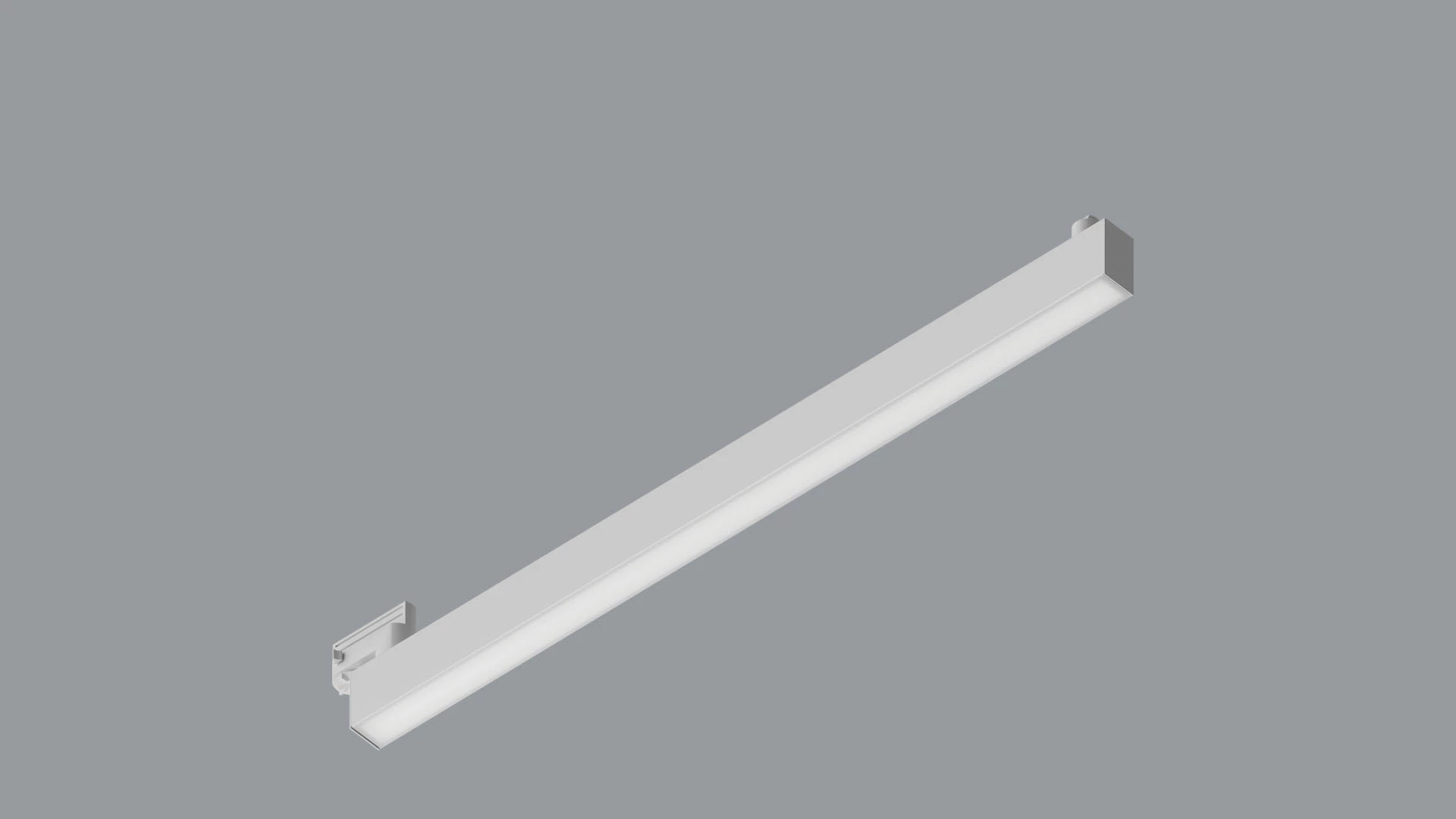

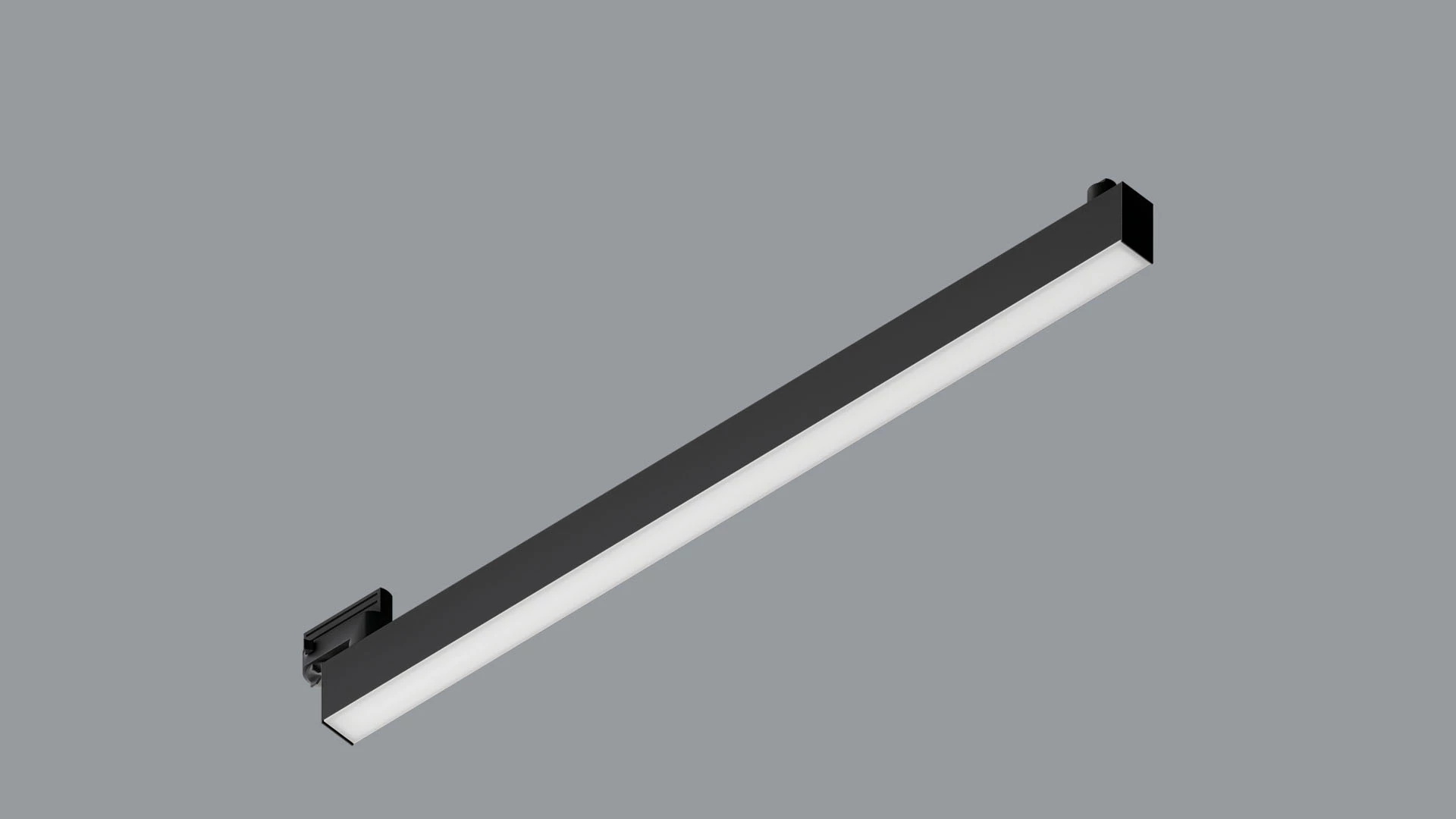

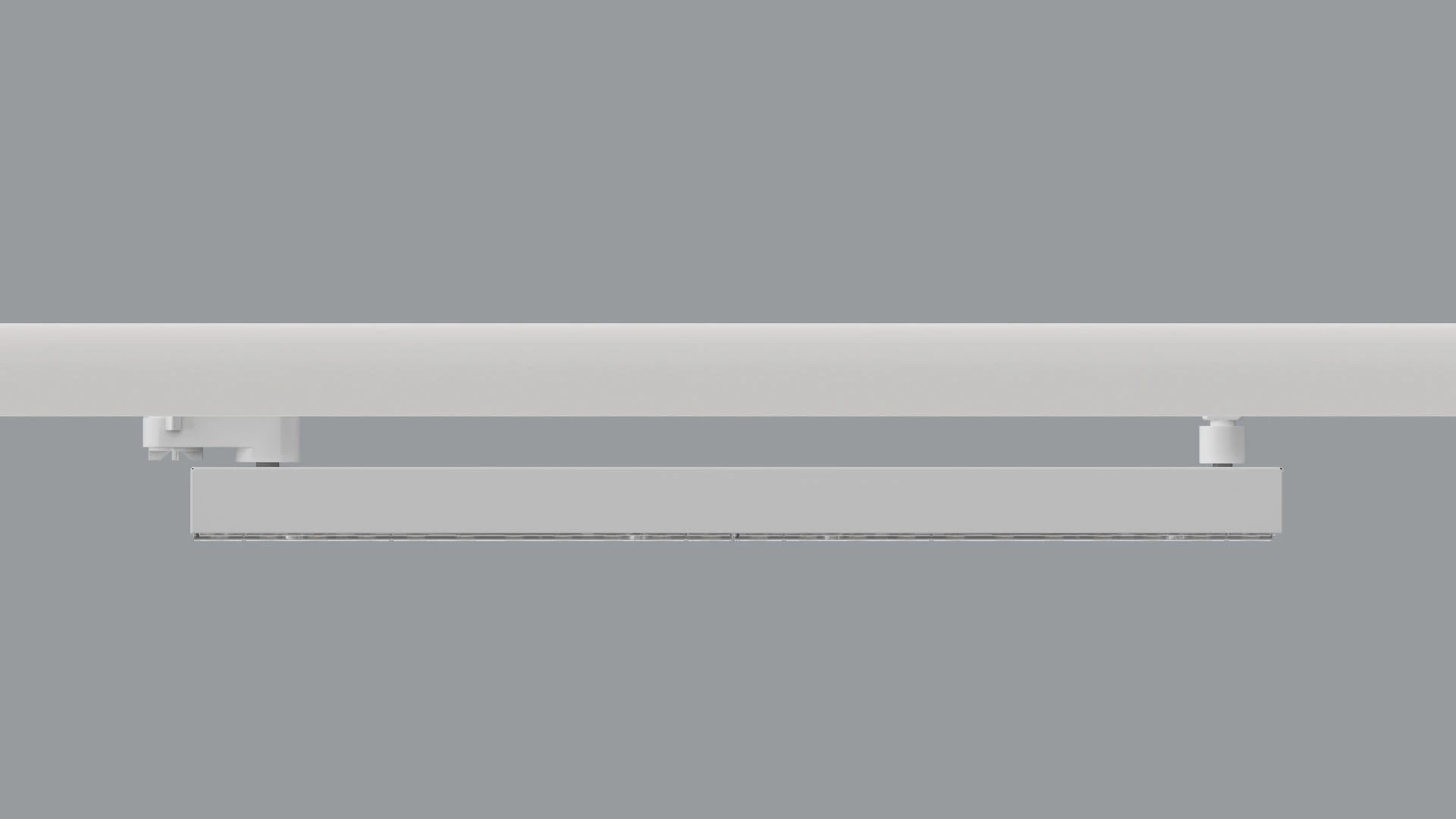

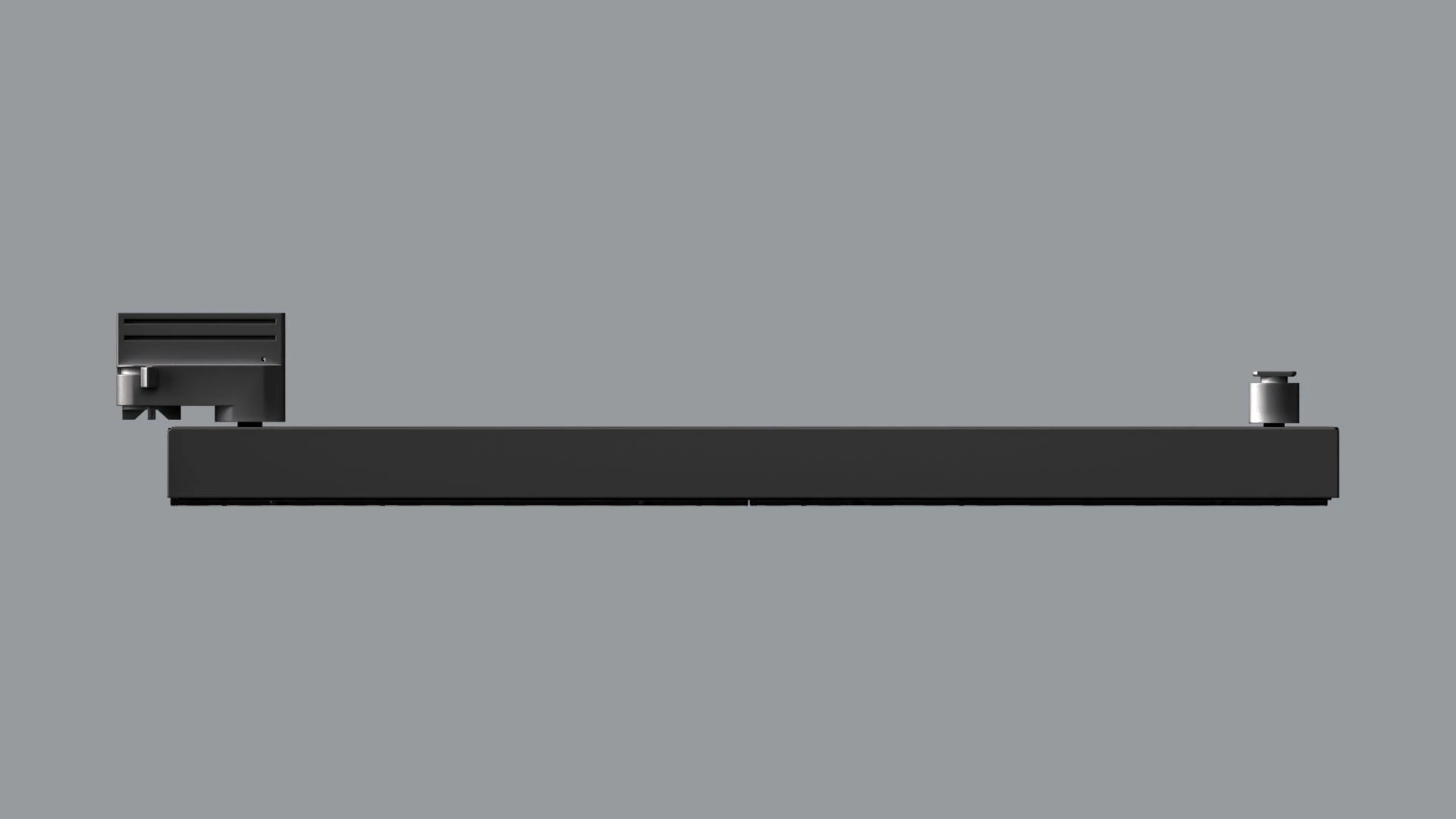

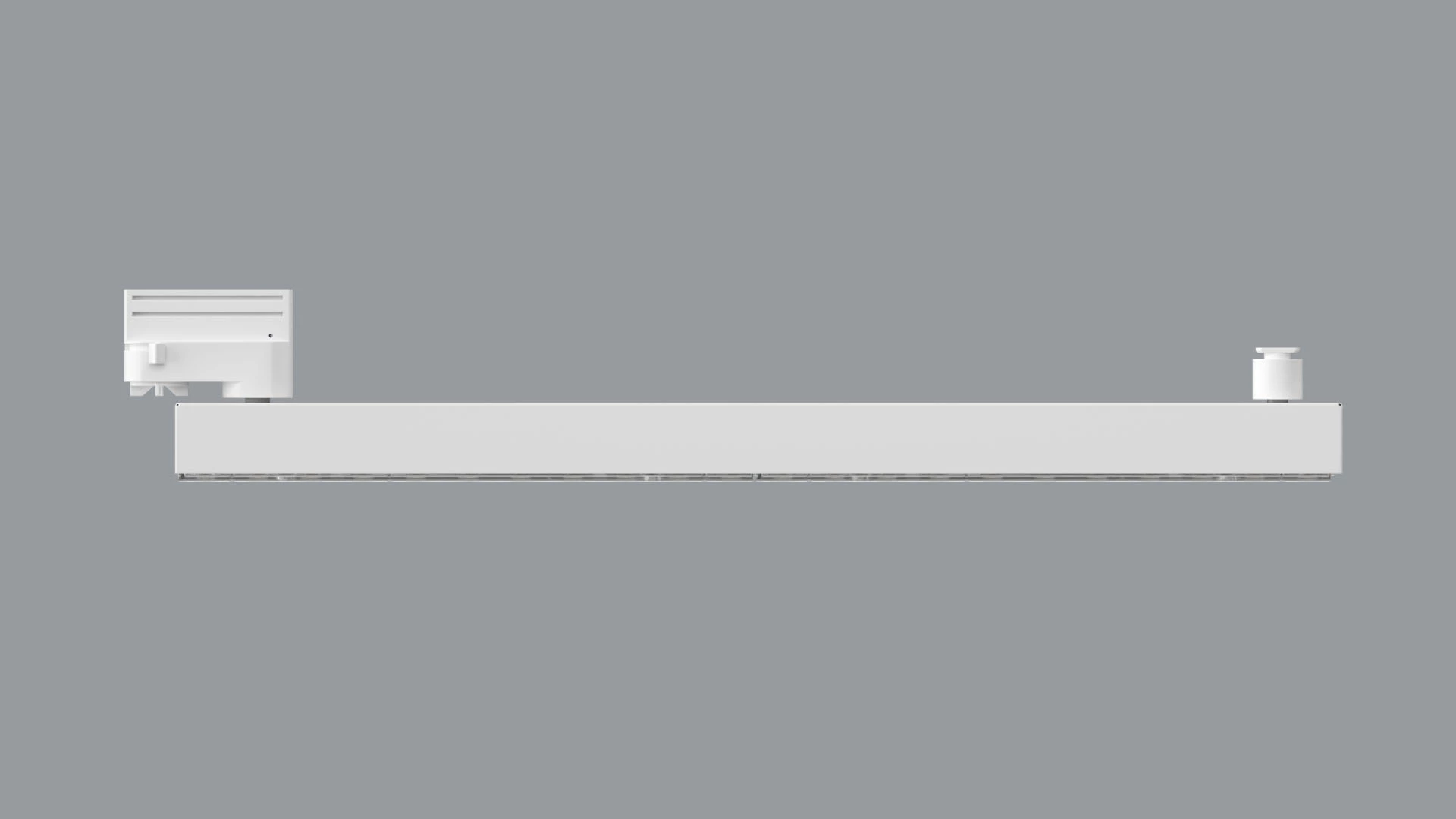

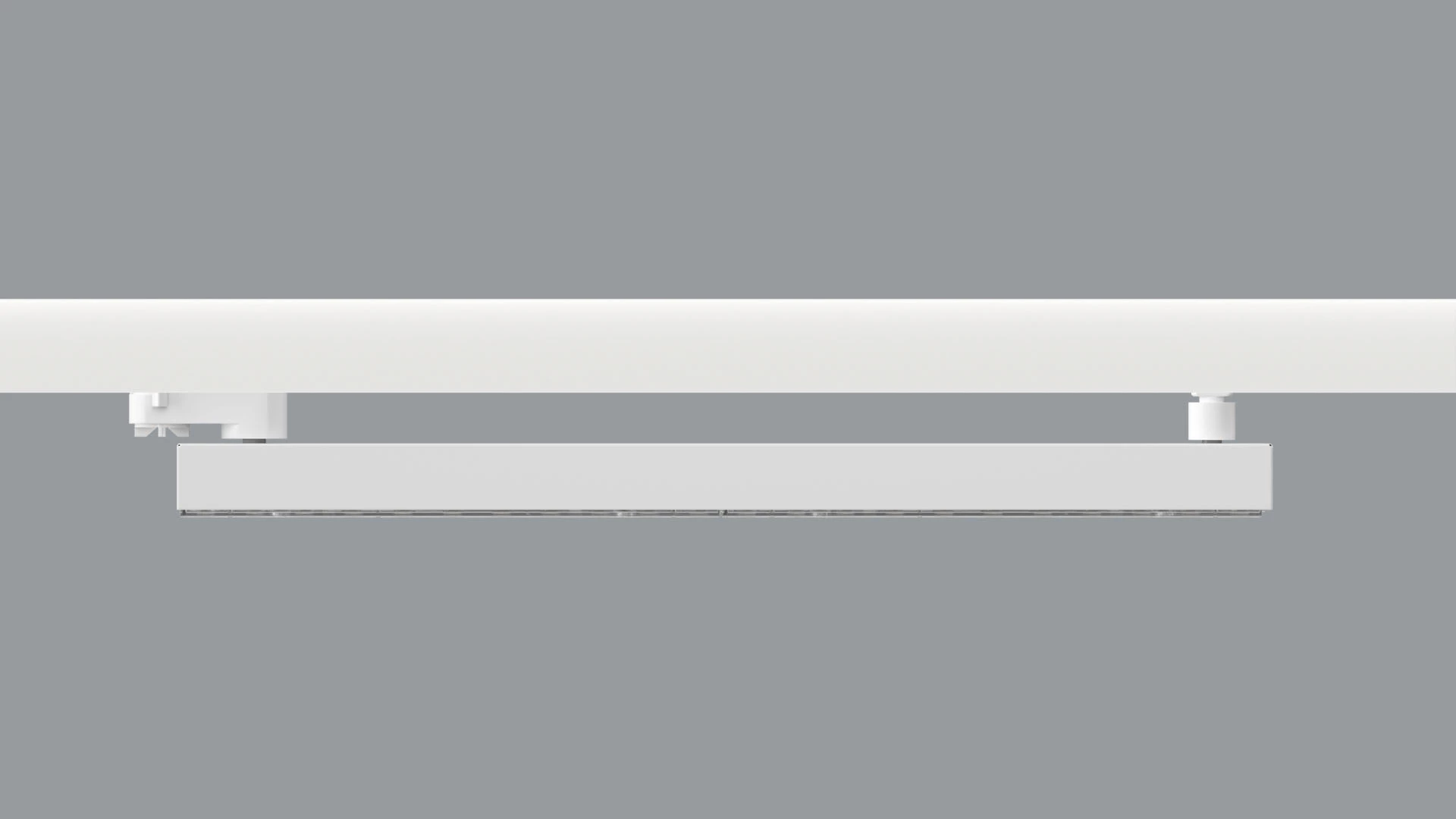

T-TRIS LINE
Adjustable, versatile, and energy efficient lighting is perfect for displaying the products and drawing clients' attention. The system with a flexible, fast, and easy installation based on the standard three-phase track rail allowing lighting of specific areas while making products stand out.
- Application: Retail
- CRI: >80
- Diffuser: PLX (PMMA opal)
- Driver: standard on/off (E), DIM DALI (EDD)
- Colour: RAL 9005 (black), RAL 9006 (grey, metallic, fine structure), RAL 9003 (white)
- Light source: LED
- Material: aluminum
Product variants
Filters
Filters
| Product ID | Name | [Lm] | [Lm/W] | Diffuser | Driver | Colour | [K] | A x B x H |
|---|---|---|---|---|---|---|---|---|
| 11.1671.3101.63 | T-TRIS LINE50 PLX E 830 3F / L-845 mm | 1258 | 74 | PLX (PMMA opal) | standard on/off (E) | RAL 9003 (white) | 3000 | 36 x 845 x 63 |
| 11.1671.3103.04 | T-TRIS LINE 3000 PLX E 830 3F / L-845 mm | 1530 | 68 | PLX (PMMA opal) | standard on/off (E) | RAL 9005 (black) | 3000 | 36 x 845 x 63 |
| 11.1671.3103.63 | T-TRIS LINE 3000 PLX E 830 3F / L-845 mm | 1530 | 68 | PLX (PMMA opal) | standard on/off (E) | RAL 9003 (white) | 3000 | 36 x 845 x 63 |
| 11.1671.3107.04 | T-TRIS LINE 3000 PLX EDD 830 3F / L-845 mm | 1530 | 68 | PLX (PMMA opal) | DIM DALI (EDD) | RAL 9005 (black) | 3000 | 36 x 845 x 63 |
| 11.1671.3104.04 | T-TRIS LINE 3100 PLX E 840 3F / L-845 mm | 1611 | 71,6 | PLX (PMMA opal) | standard on/off (E) | RAL 9005 (black) | 4000 | 36 x 845 x 63 |
| 11.1671.3104.63 | T-TRIS LINE 3100 PLX E 840 3F / L-845 mm | 1611 | 71,6 | PLX (PMMA opal) | standard on/off (E) | RAL 9003 (white) | 4000 | 36 x 845 x 63 |
| 11.1671.3108.04 | T-TRIS LINE 3100 PLX EDD 840 3F / L-845 mm | 1611 | 71,6 | PLX (PMMA opal) | DIM DALI (EDD) | RAL 9005 (black) | 4000 | 36 x 845 x 63 |
| 11.1671.3205.63 | T-TRIS LINE 2600 PLX EDD 830 3F / L-1125 mm | 1677 | 76,2 | PLX (PMMA opal) | DIM DALI (EDD) | RAL 9003 (white) | 3000 | 36 x 1125 x 63 |
| 11.1671.3202.63 | T-TRIS LINE 2700 PLX E 840 3F / L-1125 mm | 1765 | 80,2 | PLX (PMMA opal) | standard on/off (E) | RAL 9003 (white) | 4000 | 36 x 1125 x 63 |
| 11.1671.3203.63 | T-TRIS LINE 3500 PLX E 830 3F / L-1125 mm | 2041 | 72,1 | PLX (PMMA opal) | standard on/off (E) | RAL 9003 (white) | 3000 | 36 x 1125 x 63 |
