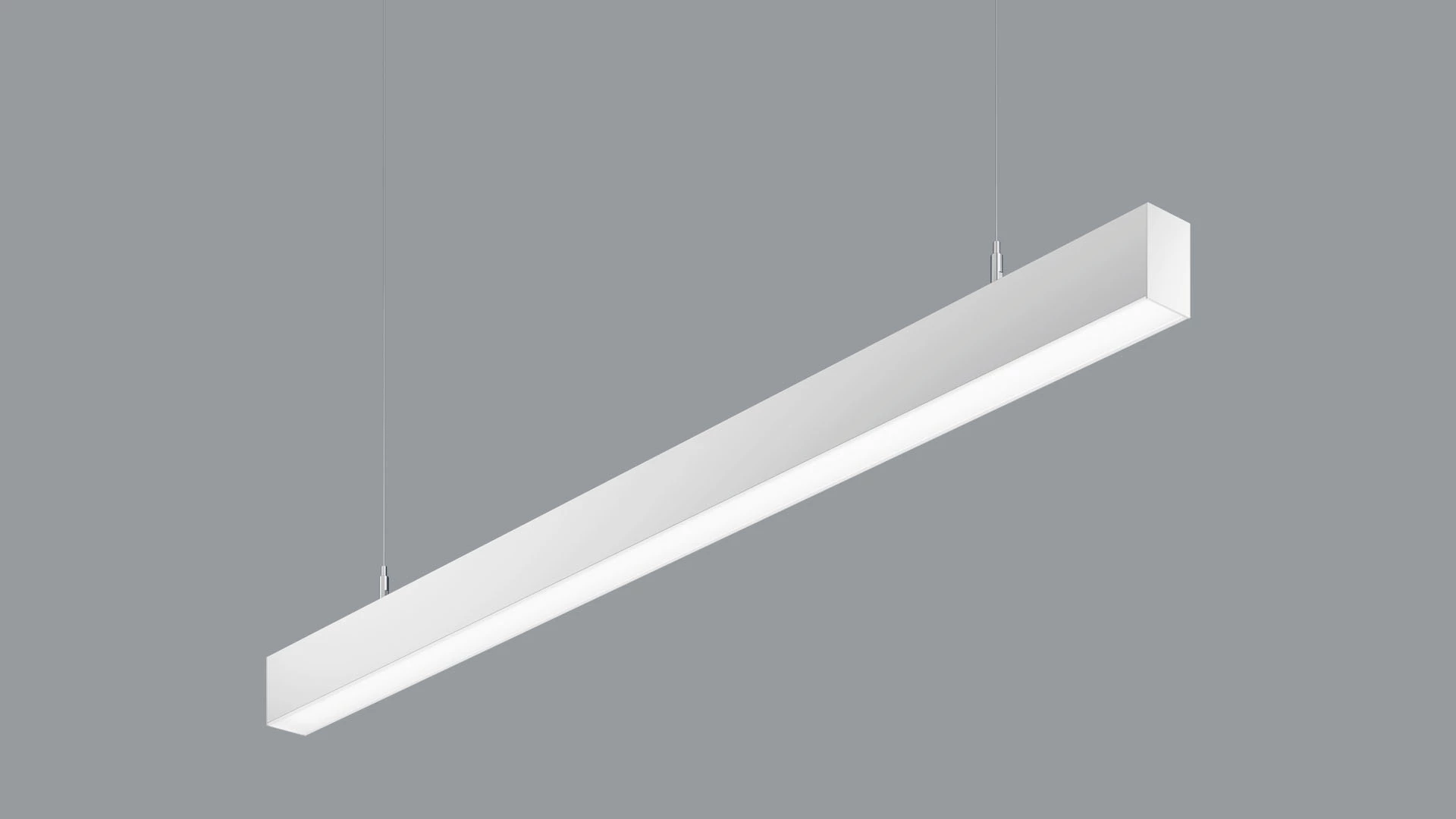

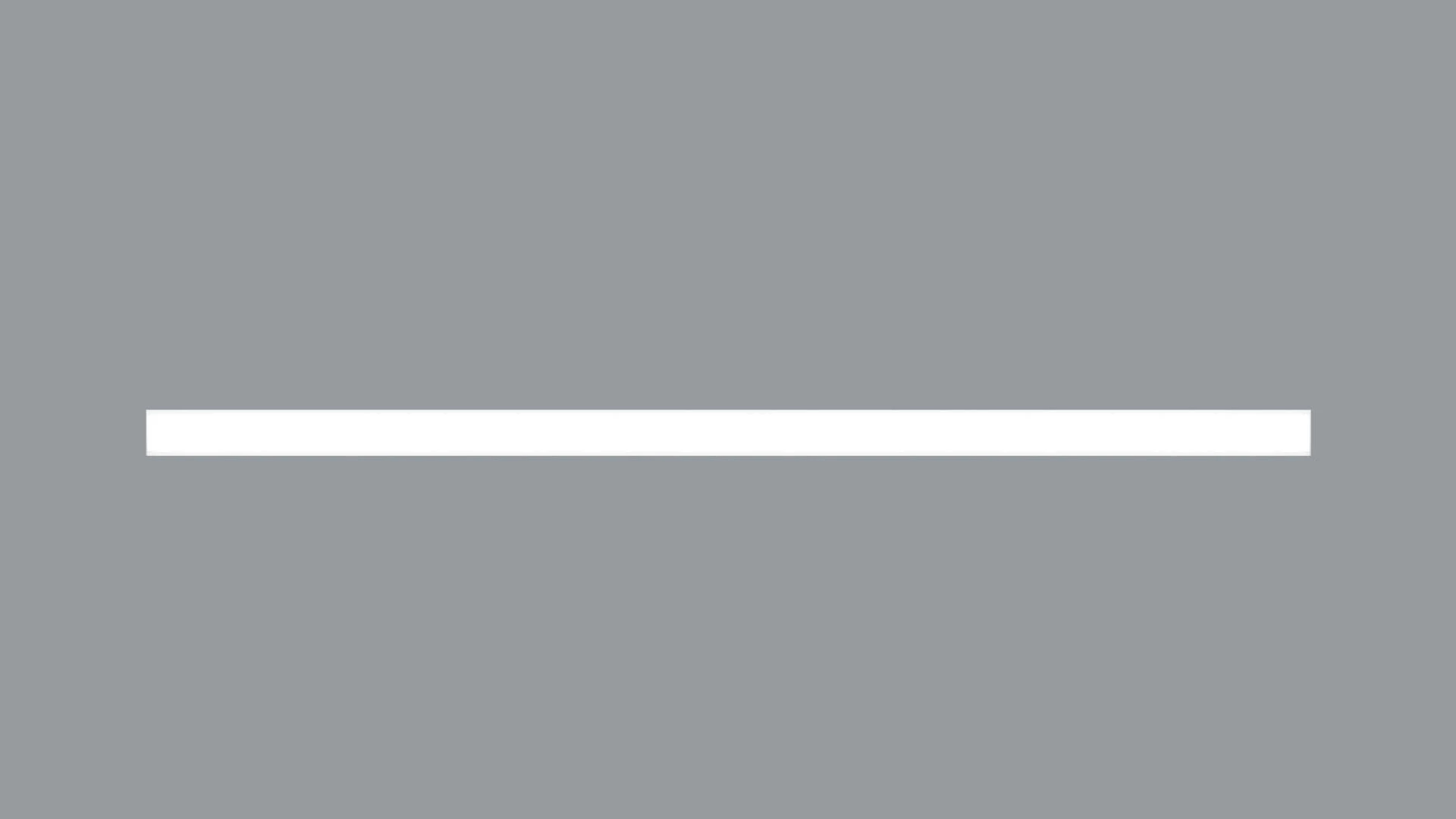

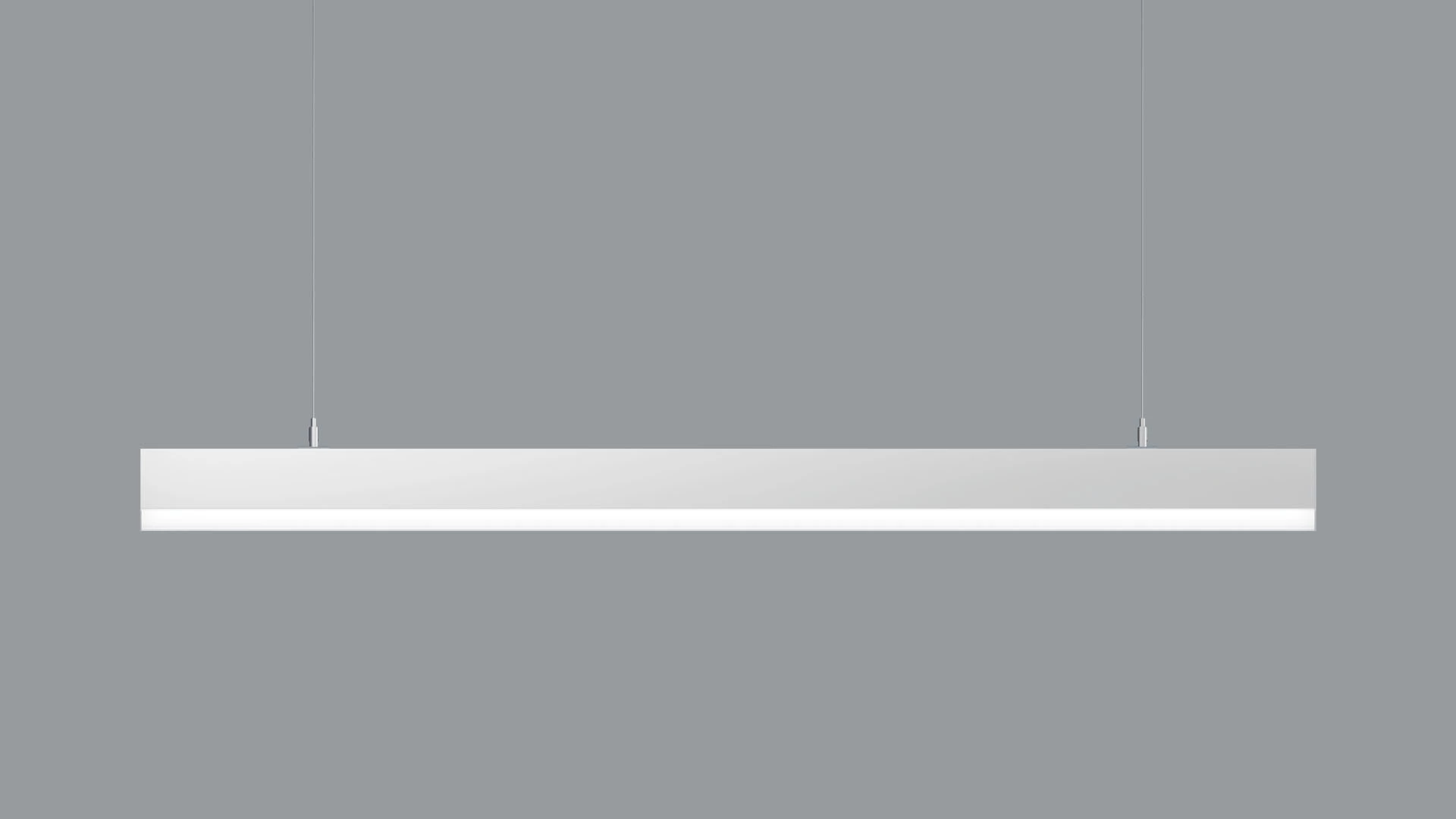

X-LINE SLIM UP&DOWN LED 3250/3250 PC/OPTICS-ASYM E 24 840 / L-1425MM S-1,5M

Indoor luminaire. Assembly: surface mounted on slings. The body material is aluminum. Colour - anodised aluminum. Luminaire dimensions: 1425 x 48 x 70 mm. Diffuser: PC/OPTICS (opalescent polycarbonate/optical system based on lenses) [up/down]. The efficiency of the optical system is 74,22%. Beam angle: asymmetric light distribution - Imax=-20°. Light source type: LED. Colour of the light 4000 K. SDCM=3. CRI>80. Lifetime of LED sources: 100000 h L80/B10. Luminaire luminous flux: 4943,2 lm. Power of luminaire: 35,2 W. Luminaire's light efficiency: 140,4 lm/W. Driver: standard on/off (E). Voltage 220..240 V, 50..60 Hz. Power factor cosφ: >0,95. Circuit load capacity: 16 (B10), 25 (B16), 26(C10), 42 (C16). Operating temperature range: 5 ÷ 35° C. Protection degree: IP40. Impact resistant: IK04. Protection against electric shock: I. Photobiological risk class (IEC/EN 62471): RG0. The luminaire can be made in CLO (Constant Lumen Output) version. Please check in the data sheet and installation instructions whether installation accessories are required.
