Category
Suspended, Surface, System luminaires
Application
Retail, Industry
Luminaire luminous flux [lm]
3435.1
Luminaire's light efficiency [lm/W]
180.8
Power of luminaire [W]
19
Colour of the light [K]
3000
CRI
>80
Diffuser
optical system based on PMMA lenses
Beam
superflood - over 120°
Driver
standard on/off (E)
Light distribution
Direct (l-down)
Colour
RAL 9016 (white)
Dimensions [mm]
900 x 72 x 66
Light source
LED
Lifetime of LED sources [h]
90000
Lx/By
L80/B10
SDCM (LED sources)
3
Photobiological risk class (IEC/EN 62471)
RG0
Luminous flux LED [lm]
3562
Luminous efficiency of sources [lm/W]
209.5
Protection degree
IP20
LED power [W]
17
Voltage
220..240 V, 50..60 Hz
Protection against electric shock
I
Circuit load capacity
25 (B10), 40 (B16), 39 (C10), 62 (C16)
Power factor cos φ
>0,95
Assembly
directly mounted to ceiling construction or surface mounted on slings
Material
steel sheet
Impact resistant
IK06
Operating temperature range [°C]
-20 ÷ 35
Beam angle [°]
(C0-C180) / (C90-C270) - 125,6° / 121,2°
EAN
5902107655358

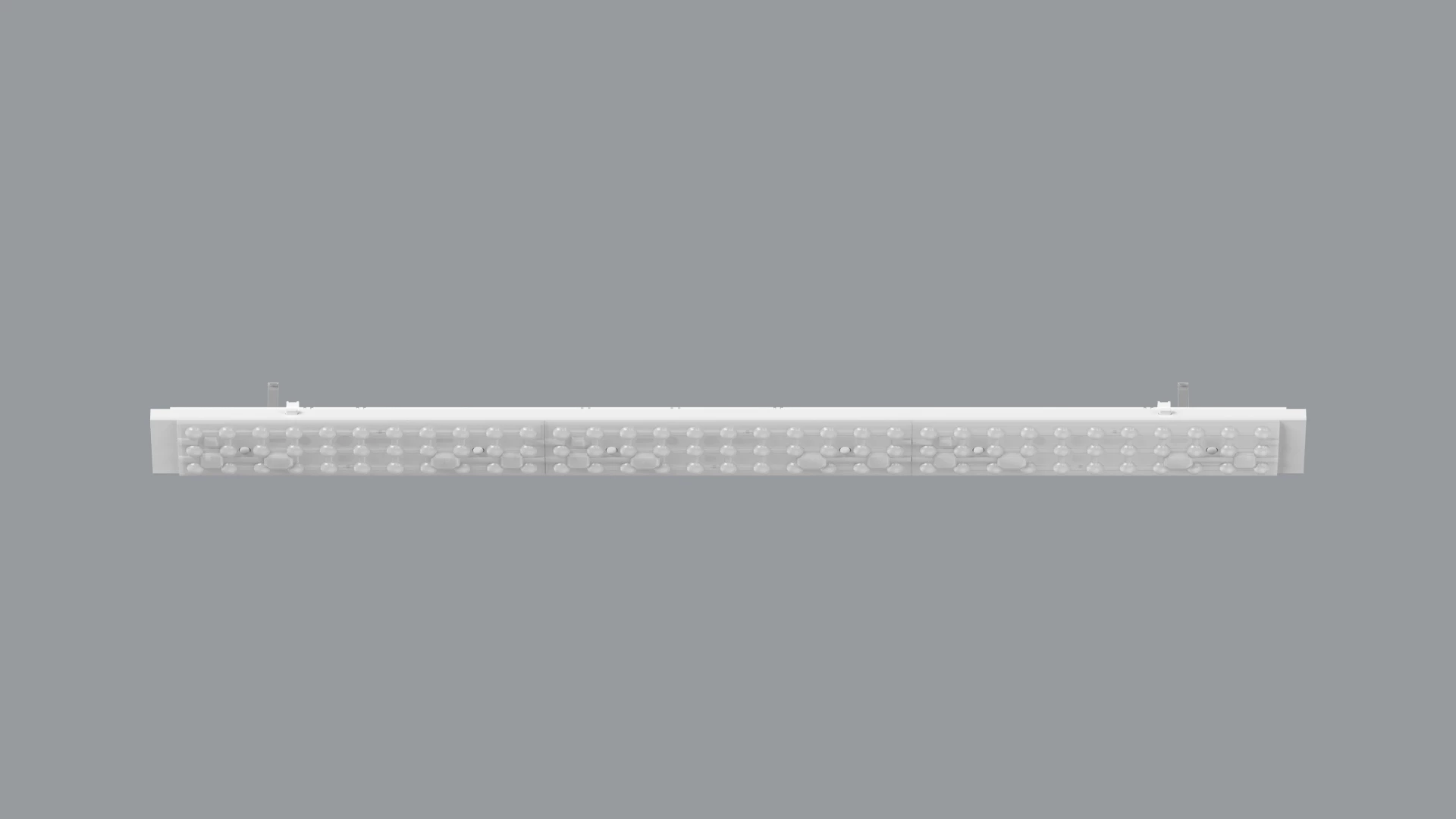

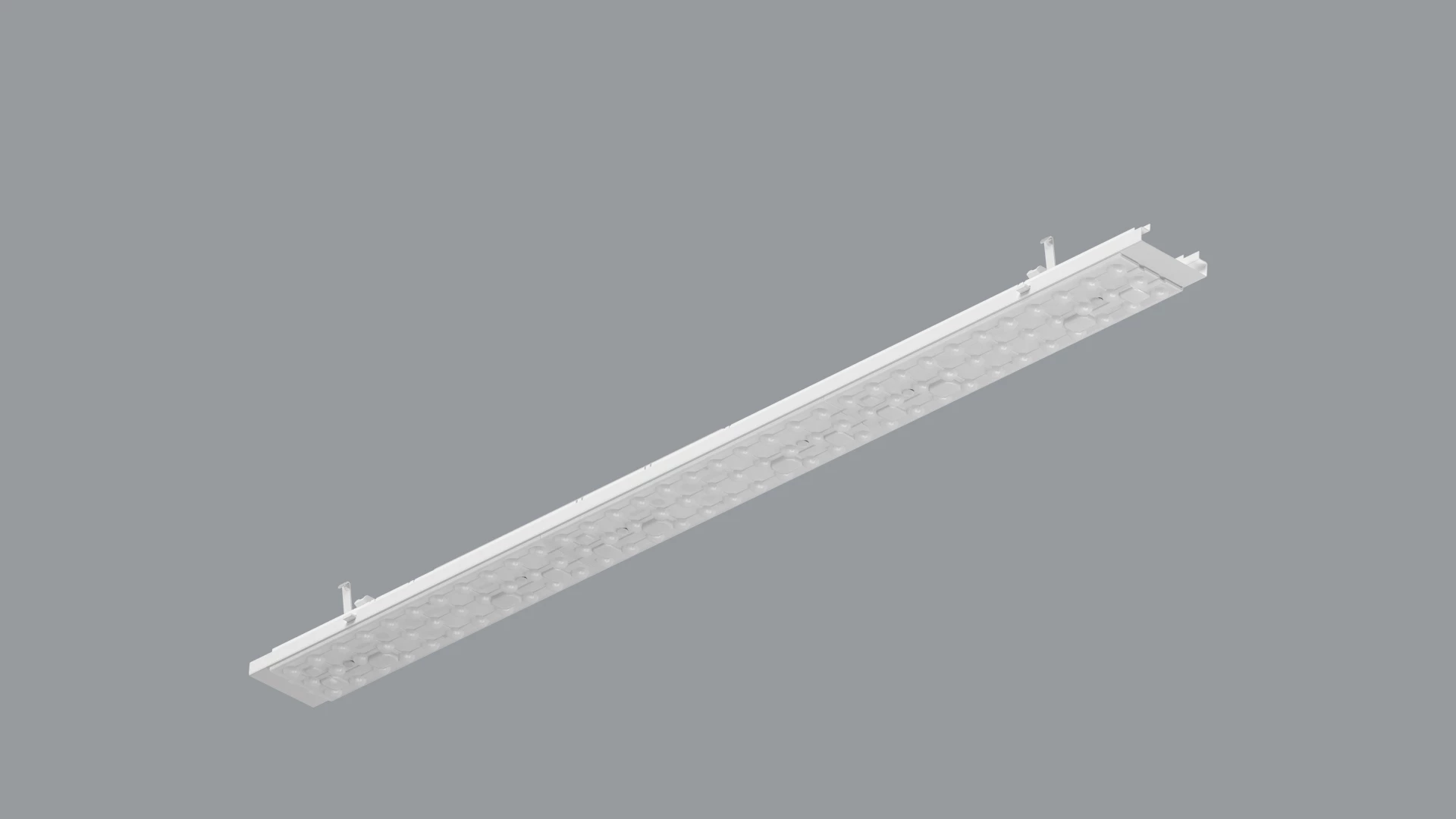

GRANVIA 3500 ULTRA-WIDE E 34 830 / L-900MM

Indoor luminaire. Assembly: directly mounted to ceiling construction or surface mounted on slings. The body material is steel sheet. Colour - RAL 9016 (white). Luminaire dimensions: 900 x 72 x 66 mm. Diffuser: optical system based on PMMA lenses. The efficiency of the optical system is 96,44%. Beam angle: (C0-C180) / (C90-C270) - 125,6° / 121,2°. Light source type: LED. Colour of the light 3000 K. SDCM=3. CRI>80. Lifetime of LED sources: 90000 h L80/B10. Luminaire luminous flux: 3435,1 lm. Power of luminaire: 19 W. Luminaire's light efficiency: 180,8 lm/W. Driver: standard on/off (E). Voltage 220..240 V, 50..60 Hz. Power factor cosφ: >0,95. Circuit load capacity: 25 (B10), 40 (B16), 39 (C10), 62 (C16). Operating temperature range: -20 ÷ 35° C. Protection degree: IP20. Impact resistant: IK06. Protection against electric shock: I. Photobiological risk class (IEC/EN 62471): RG0.
CE
LED
E
kl.I
IP20
IK06
indoor
nie_dom
electronic-equipment
supply-voltage
SDCM-3
lifetime-90000-L80-B10
cri-v80
