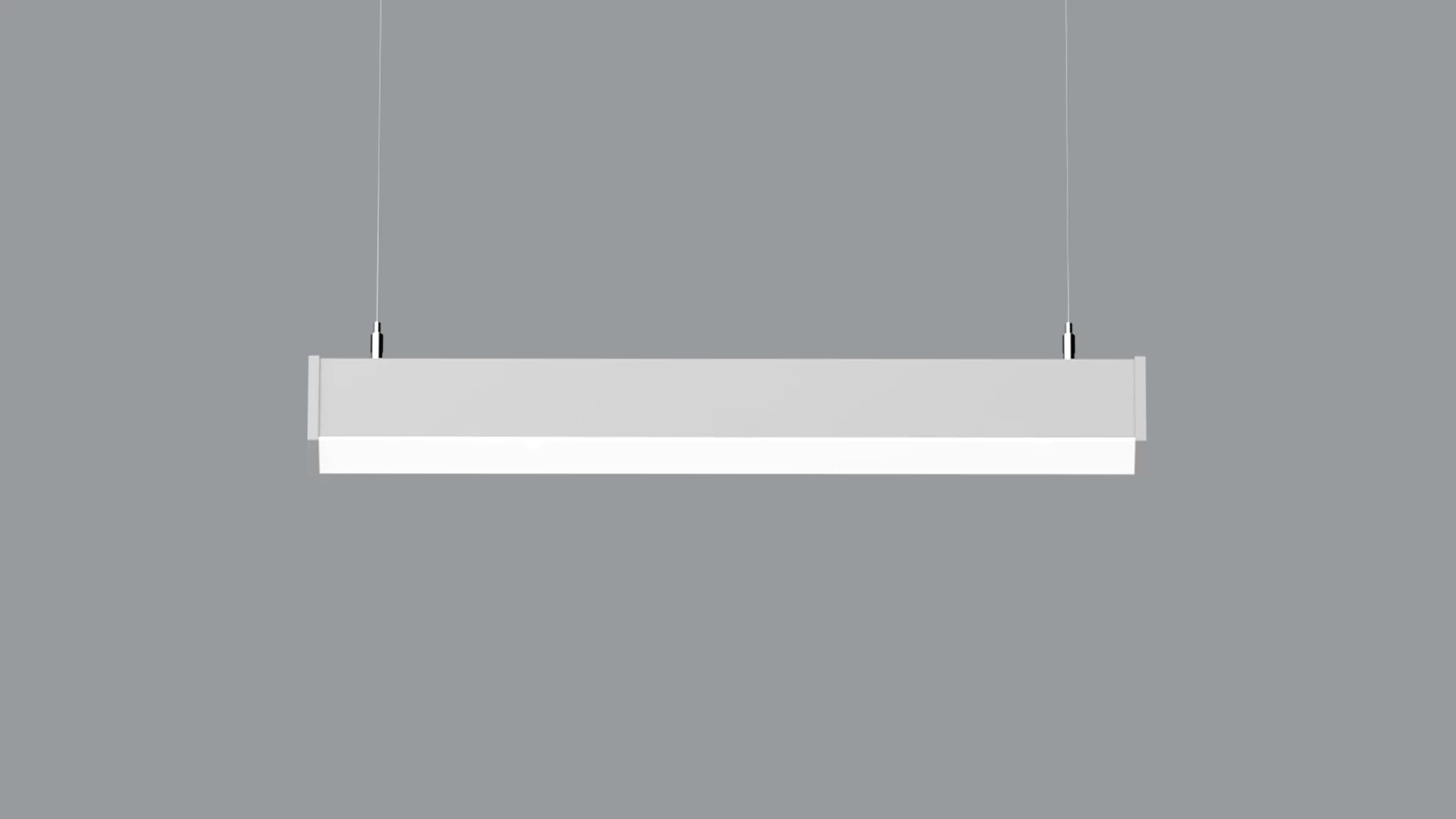

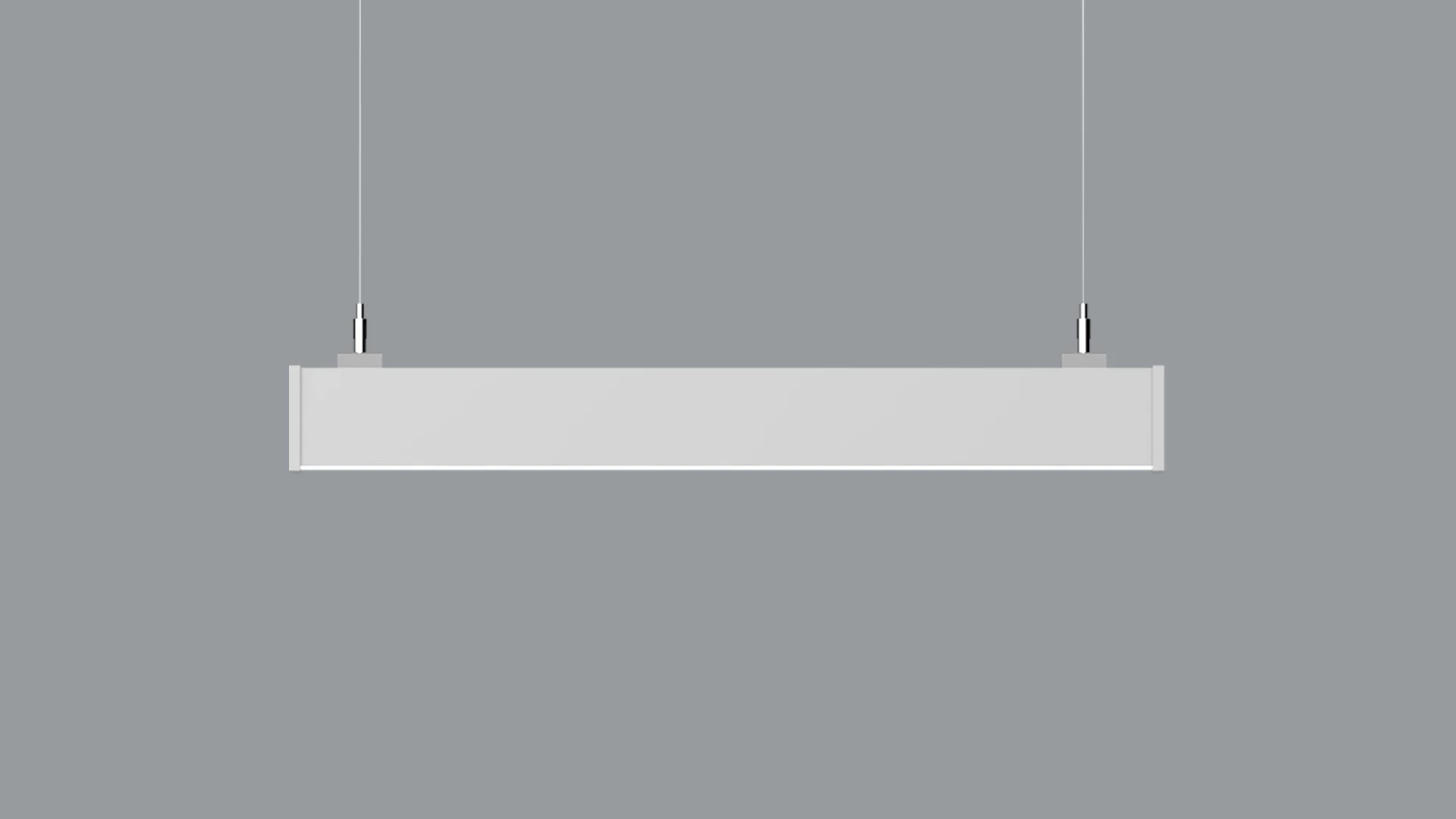

X-LINE SLIM UP&DOWN LED LINE

Luminaire for building long light lines made of aluminum profile. Its characteristic feature is the light distribution in the upper and lower half-space. Comparing to the traditional X-Line LED, size of the luminaire has been reduced, and all construction has been closed in a narrow 48 mm profile, which gives now a more elegant form of the product. The X-Line Slim uses a PC and Micro-PRM opal diffuser (intended only for the lower beam). All of this allows to manipulate light and create lighting systems, facilitating the creation of comfortable vision in the interiors and their aesthetic appearance. The X-Line Slim luminaire is designed for mounting on suspensions. LED sources distributing light in both the lower and upper half-space are connected into one circuit and use a common, single power supply. Power supply connection only via EL-marked luminaire.

  • Application: Office
  • CRI: >80
  • Diffuser: PC/Micro-PRM (opalescent polycarbonate/micro-prismatic diffuser PMMA) [up/down], PC/PLX (opalescent polycarbonate/PMMA opal) [up/down]
  • Driver: standard on/off (E), DIM DALI (EDD)
  • Colour: anodised aluminum
  • Light source: LED
  • Material: aluminum

Product variants

CE
E
kl.I
IP40
IK04
indoor
nie_dom
electronic-equipment
dimmable-DALI
supply-voltage
SDCM-3
lifetime-100000-L80-B10
lifetime-147000-L70-B10
cri-v80

Select filters

Filters

Filters

Light effects

direct-indirect light distribution direct-indirect light distribution
