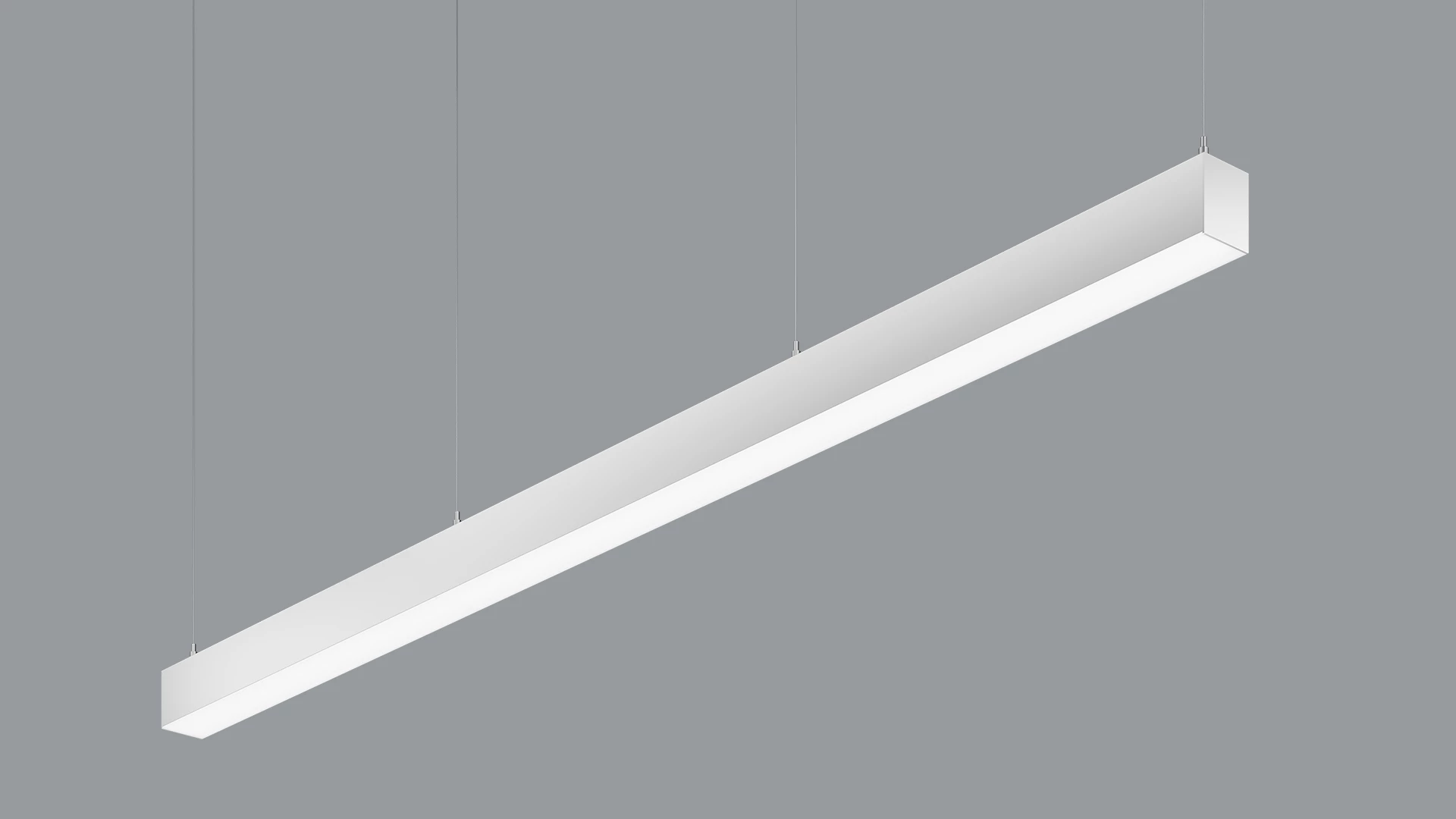

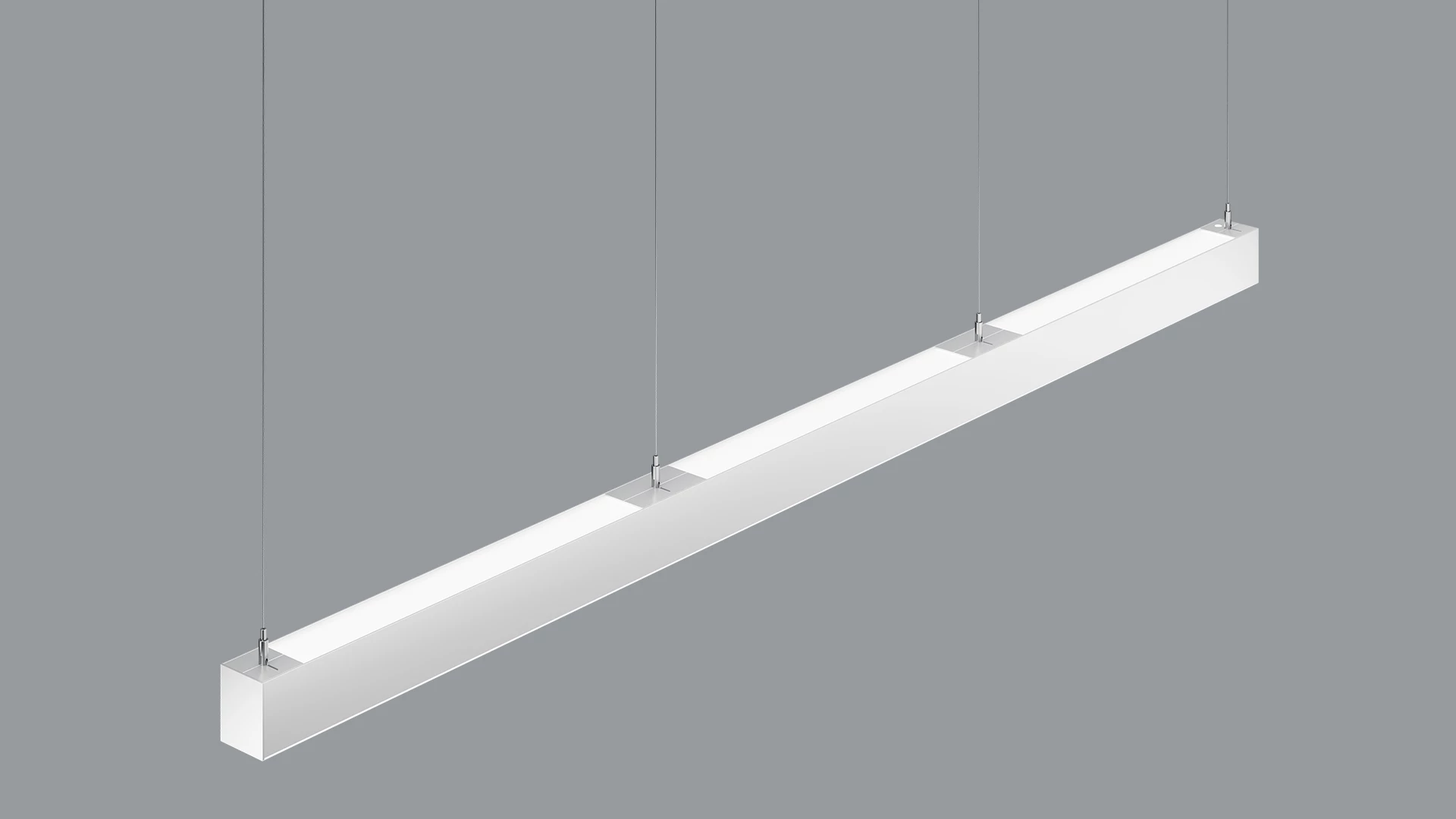

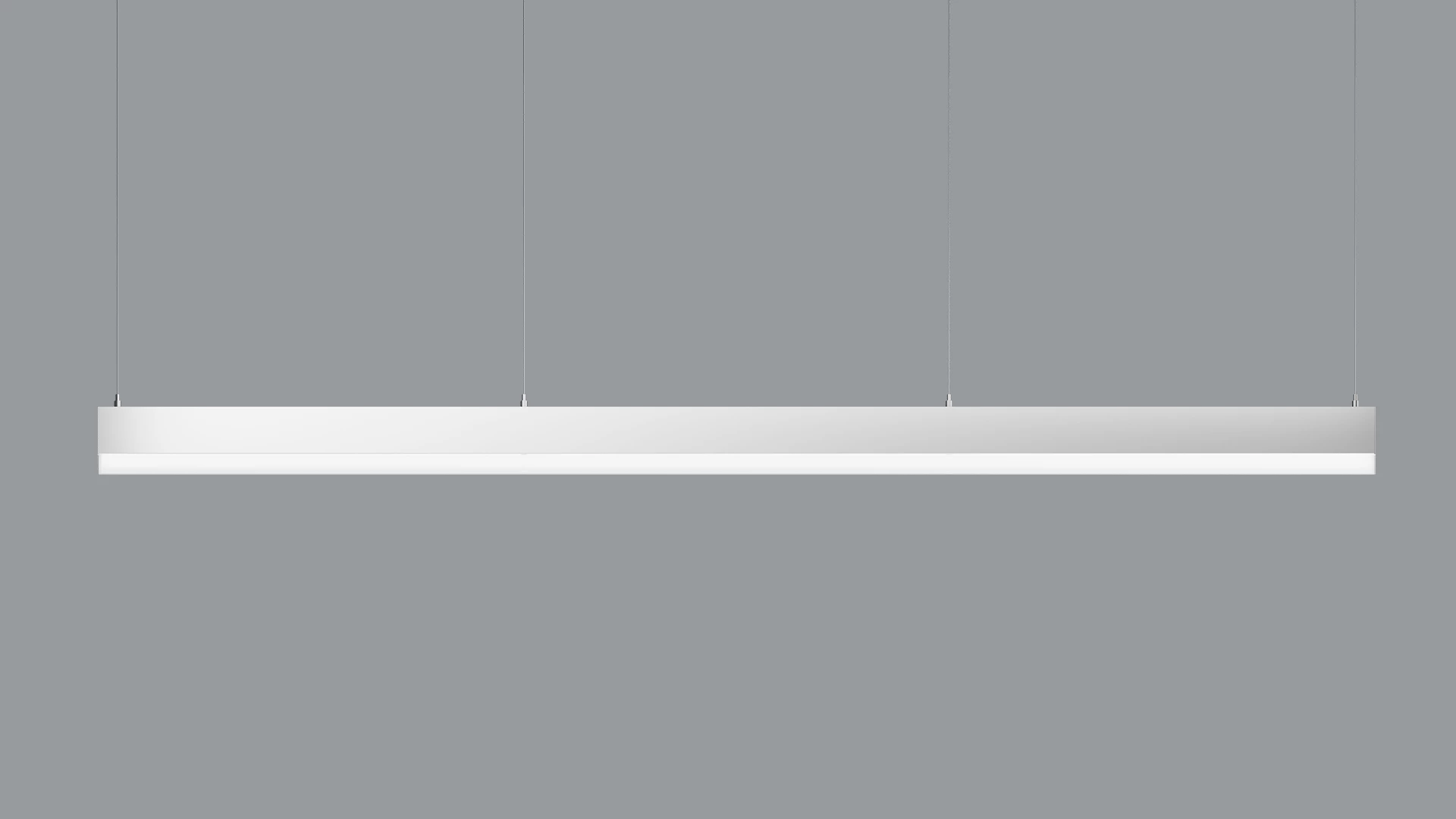

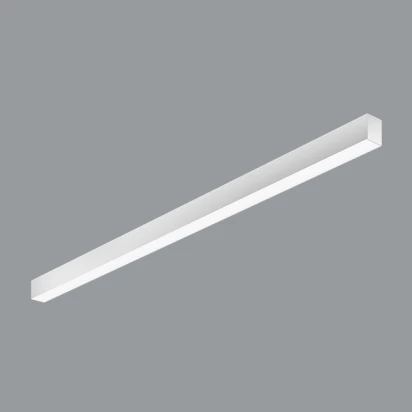

X-LINE PRO COMPACT UP&DOWN LINE

Light fitting made out of aluminium profile. Simple luminaire construction (no mounting plates or LED plates). LEDs in the standard version are mounted by inserting them into the slot in the middle of the profile. Direct-indirect (up&down) light distribution. Available optical systems: PMMA opal diffuser (PLX), microprismatic PMMA (Micro-PRM). Diffuser used for indirect light distribution (at the top of the luminaire) available only in the PLX-T version (transparent PMMA). The luminaire is available in a line version. Available colors: anodized aluminum or any color from the RAL palette on request. Gray polycarbonate end caps, white or black on request. Plastic plate (HIPS) masking the electronics compartment (only in luminaires with direct distribution). Possibility to use an aluminum snap-on aluminum cover and increase the IP rating to IP40. The use of luminaires typically for offices, public utility rooms, communication / common areas in multi-family buildings.

  • Application: Office
  • CRI: >80
  • Diffuser: PLX-T/Micro-PRM (transparent PMMA/micro-prismatic diffuser PMMA) [up/down], PLX-T/PLX (transparent PMMA/PMMA opal) [up/down]
  • Driver: standard on/off (E), DIM DALI (EDD)
  • Colour: anodised aluminum
  • Light source: LED
  • Material: aluminum

Product variants

CE
E
kl.I
IP40
IK04
indoor
nie_dom
supply-voltage
SDCM-3
lifetime-60000-L80-B10
dimmable-DALI
electronic-equipment
cri-v80

Select filters

Filters

Filters

Light effects

direct-indirect light distribution direct-indirect light distribution
